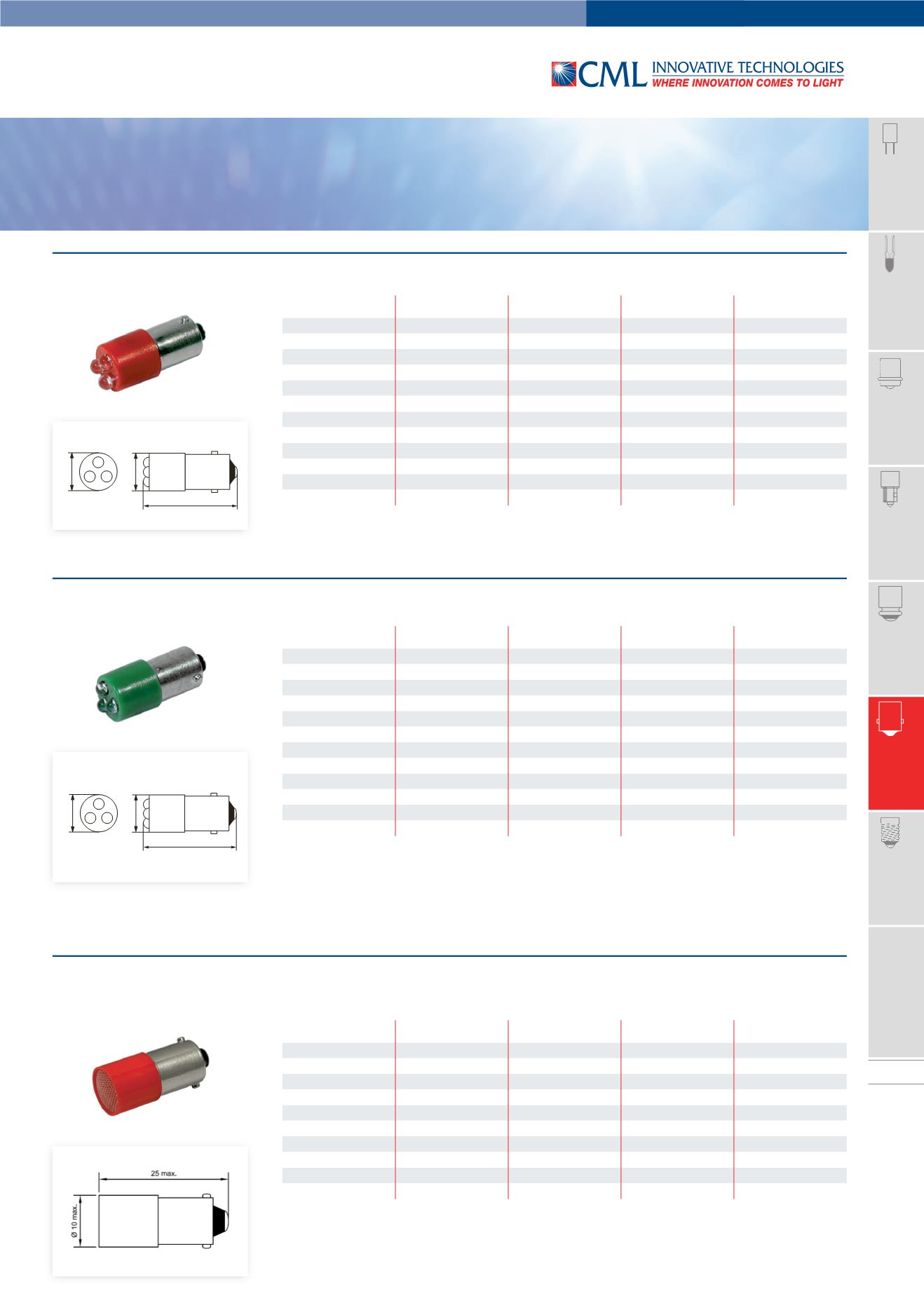

Mega StarLEDs - T-3 1/4 (10x25mm) BA9s 4x SMD LED für Bahnanwendung DIN EN 50155 /
for railway application DIN EN 50155
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Flux
18824A30
red
72V AC/DC
2,2mA AC/DC
0,4lm
18824A31
green
72V AC/DC
2,2mA AC/DC
1,5lm
18824A32
yellow
72V AC/DC
2,2mA AC/DC
0,35lm
18824A37
blue
72V AC/DC
2,2mA AC/DC
0,28lm
18824A3W
white
72V AC/DC
2,2mA AC/DC
1,2lm
18824120
red
110V AC/DC
2mA AC/DC
0,4lm
18824121
green
110V AC/DC
2mA AC/DC
1,6lm
18824122
yellow
110V AC/DC
2mA AC/DC
0,4lm
18824127
blue
110V AC/DC
2mA AC/DC
0,27lm
1882412W
white
110V AC/DC
2mA AC/DC
1,4lm
Niederspannungsabschaltung: <24V AC/DC /
Low-voltage-shutdown: <24V AC/DC
Ausfallschutz (2x2 SMD LEDs) /
Fails-safe (2x2 SMD LEDs)
Passender Lampenzieher: Bestell-Nr. 55001250 /
A suitable lamp remover: part number 55001250
Andere Spannungen auf Anfrage /
Other voltages on request
ø 10
25
ø 10
ø 10
25
ø 10
Mega StarLEDs - T-3 1/4 (10x25mm) BA9s 3x3mm LED AC/DC mit Einweggleichrichter /
with half-wave rectifier
Mega StarLEDs - T-3 1/4 (10x25mm) BA9s 3x3mm LED 130/230V AC
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
18620350
red
24V AC/DC
9mA AC / 17mA DC
3x 400mcd
18620351
green
24V AC/DC
5mA AC / 10mA DC
3x 1500mcd
18620352
yellow
24V AC/DC
9mA AC / 17mA DC
3x 340mcd
18620357
blue
24V AC/DC
9mA AC / 17mA DC
3x 780mcd
1862035W3
white clear
24V AC/DC
4mA AC / 8mA DC
3x 2400mcd
1862035W3D
white diffused
24V AC/DC
4mA AC / 8mA DC
3x 1200mcd
18620450
red
28V AC/DC
9mA AC / 17mA DC
3x 400mcd
18620451
green
28V AC/DC
5mA AC / 10mA DC
3x 1500mcd
18620452
yellow
28V AC/DC
9mA AC / 17mA DC
3x 340mcd
18620457
blue
28V AC/DC
9mA AC / 17mA DC
3x 780mcd
1862045W3
white clear
28V AC/DC
3,5mA AC / 7mA DC
3x 2100mcd
1862045W3D
white diffused
28V AC/DC
3,5mA AC / 7mA DC
3x 1050mcd
Lichtstärkedaten der verwendeten LED bei DC-Betrieb /
Luminous intensity data of the LED on direct voltage
Passender Lampenzieher: Bestell-Nr. 55001250 /
A suitable lamp remover: part number 55001250
Andere Spannungen auf Anfrage /
Other voltages on request
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
18626130
red
130V AC
5mA AC
3x 180mcd
18626131
green
130V AC
5mA AC
3x 750mcd
18626132
yellow
130V AC
5mA AC
3x 160mcd
18626137
blue
130V AC
5mA AC
3x 230mcd
1862613W3
white clear
130V AC
2mA AC
3x 600mcd
1862613W3D
white diffused
130V AC
2mA AC
3x 300mcd
18626230
red
230V AC
3mA AC
3x 120mcd
18626231
green
230V AC
3mA AC
3x 450mcd
18626232
yellow
230V AC
3mA AC
3x 110mcd
18626237
blue
230V AC
3mA AC
3x 200mcd
1862623W3
white clear
230V AC
1,5mA AC
3x 450mcd
1862623W3D
white diffused
230V AC
1,5mA AC
3x 225mcd
Die 130V AC StarLED ist zum direkten Anschluss an die Versorgungsspannung von 130V AC dimensioniert. Ein Betrieb an einer höheren
Versorgungsspannung mittels handelsüblicher Lampenfassungselemente mit intergriertem Vorwiderstand ist nicht zulässig.
The 130V AC StarLED has been developed to run on a supply voltage of 130V AC only. An operation at a higher supply voltage using com-
mercial lampholders with integrated resistor is not allowed.
Passender Lampenzieher: Bestell-Nr. 55001250 /
A suitable lamp remover: part number 55001250
Andere Spannungen auf Anfrage /
Other voltages on request
