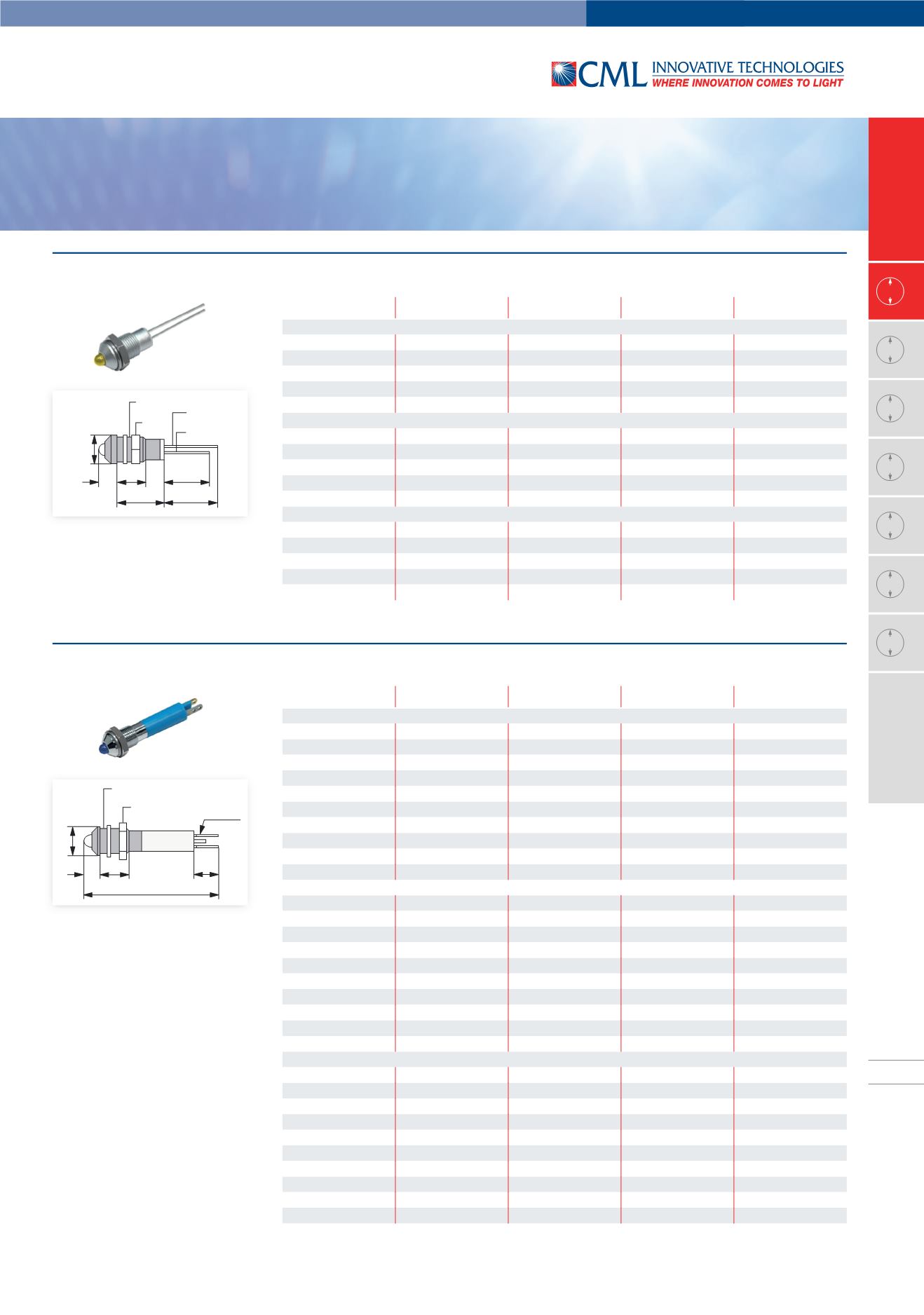

LED Signalleuchten
LED Panel Mount Indicators
Außenreflektor ohne Vorwiderstand IP40 /
Prominent (exterior) bezel without resistor IP40
Außenreflektor mit Vorwiderstand IP40 /
Prominent (exterior) bezel with resistor IP40
Part Number
Colour
Typ. Forward Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19020003
red
2,0V DC
–
13mcd at 20mA
19020001
green
2,2V DC
–
8mcd at 20mA
19020002
yellow
2,1V DC
–
8mcd at 20mA
19020007
blue
4,5V DC
–
40mcd at 20mcd
1902000W3D
white
3,2V DC
–
3000mcd at 20mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19021003
red
2,0V DC
–
13mcd at 20mA
19021001
green
2,2V DC
–
8mcd at 20mA
19021002
yellow
2,1V DC
–
8mcd at 20mA
19021007
blue
4,5V DC
–
40mcd at 20mcd
1902100W3D
white
3,2V DC
–
3000mcd at 20mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19022003
red
2,0V DC
–
13mcd at 20mA
19022001
green
2,2V DC
–
8mcd at 20mA
19022002
yellow
2,1V DC
–
8mcd at 20mA
19022007
blue
4,5V DC
–
40mcd at 20mcd
1902200W3D
white
3,2V DC
–
3000mcd at 20mcd
Maximale Frontplattenstärke 5,5mm /
Maximum panel thickness 5.5mm
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19020253
red
12V DC
20mA DC
13mcd
19020251
green
12V DC
20mA DC
8mcd
19020252
yellow
12V DC
20mA DC
8mcd
19020257
blue
12V DC
18mA DC
36mcd
1902025W
white
12V DC
6mA DC
900mcd
19020353
red
24V DC
15mA DC
8mcd
19020351
green
24V DC
15mA DC
6mcd
19020352
yellow
24V DC
15mA DC
6mcd
19020357
blue
24V DC
15mA DC
26mcd
1902035W
white
24V DC
7mA DC
1050mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19021253
red
12V DC
20mA DC
13mcd
19021251
green
12V DC
20mA DC
8mcd
19021252
yellow
12V DC
20mA DC
8mcd
19021257
blue
12V DC
18mA DC
36mcd
1902125W
white
12V DC
6mA DC
900mcd
19021353
red
24V DC
15mA DC
8mcd
19021351
green
24V DC
15mA DC
6mcd
19021352
yellow
24V DC
15mA DC
6mcd
19021357
blue
24V DC
15mA DC
26mcd
1902135W
white
24V DC
7mA DC
1050mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19022253
red
12V DC
20mA DC
13mcd
19022251
green
12V DC
20mA DC
8mcd
19022252
yellow
12V DC
20mA DC
8mcd
19022257
blue
12V DC
18mA DC
36mcd
1902225W
white
12V DC
6mA DC
900mcd
19022353
red
24V DC
15mA DC
8mcd
19022351
green
24V DC
15mA DC
6mcd
19022352
yellow
24V DC
15mA DC
6mcd
19022357
blue
24V DC
15mA DC
26mcd
1902235W
white
24V DC
7mA DC
1050mcd
Maximale Frontplattenstärke 5,5mm /
Maximum panel thickness 5.5mm
Andere Spannungen auf Anfrage /
Other voltages on request
11,5
7
SW 8
M 6 x 0,5
13
11
4,5
ø 7
Anode
anode
Kathode
cathode
4
SW 8
ø 7
M6 x 0,5
2,0 x 0,5
6
33
7
