44 / 77
6mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
44

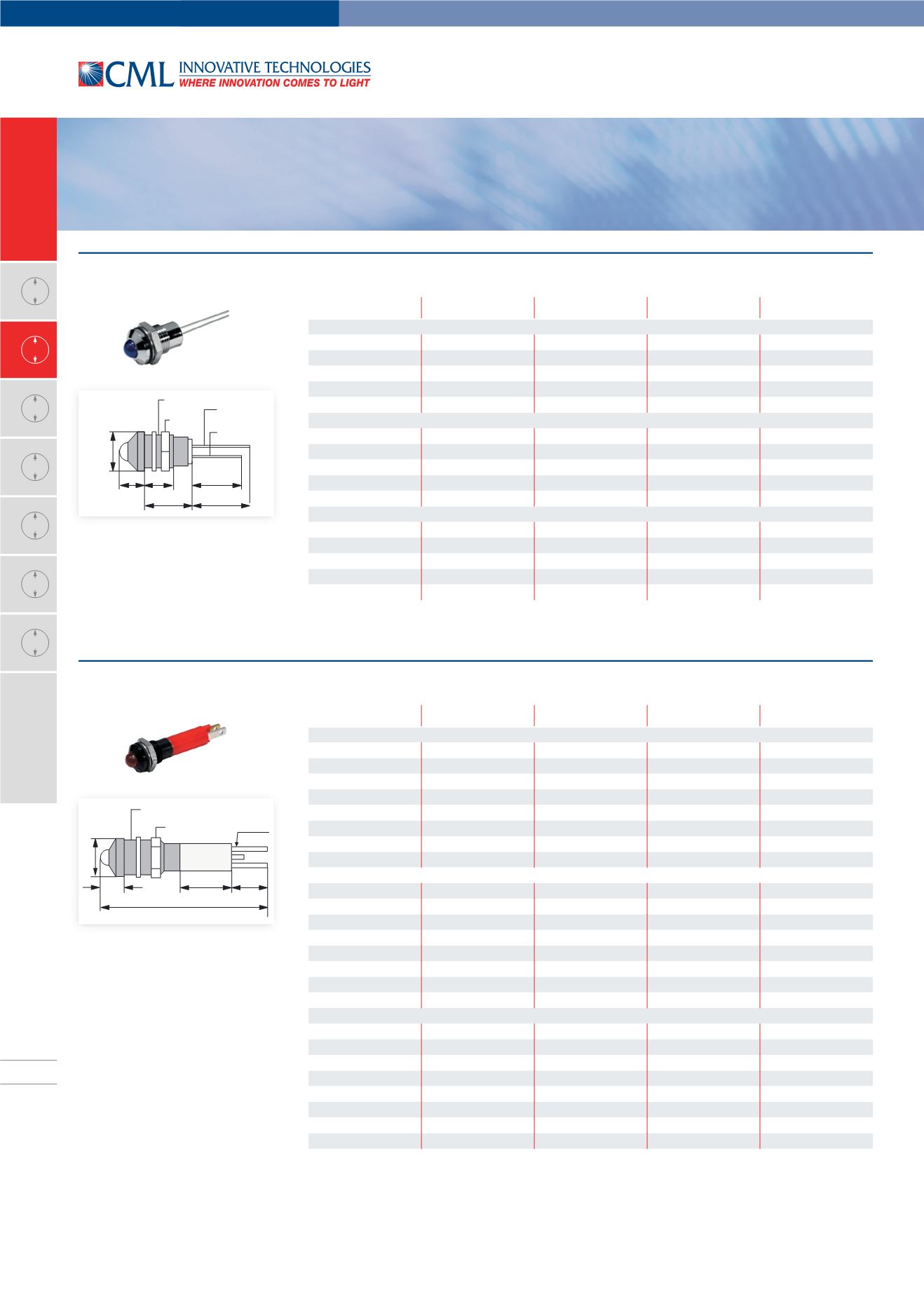

LED Signalleuchten
LED Panel Mount Indicators
Außenreflektor ohne Vorwiderstand IP40 /
Prominent (exterior) bezel without resistor IP40
Part Number
Colour
Typ. Forward Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19040003
red
2,0V DC
–
80mcd at 20mA
19040001
green
2,2V DC
–
32mcd at 20mA
19040002
yellow
2,1V DC
–
32mcd at 20mA
19040007
blue
4,5V DC
–
60mcd at 20mcd
1904000W5D
white
3,2V DC
–
2000mcd at 20mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19041003
red
2,0V DC
–
80mcd at 20mA
19041001
green
2,2V DC
–
32mcd at 20mA
19041002
yellow
2,1V DC
–
32mcd at 20mA
19041007
blue
4,5V DC
–
60mcd at 20mcd
1904100W5D
white
3,2V DC
–
2000mcd at 20mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19042003
red
2,0V DC
–
80mcd at 20mA
19042001
green
2,2V DC
–
32mcd at 20mA
19042002
yellow
2,1V DC
–
32mcd at 20mA
19042007
blue
4,5V DC
–
60mcd at 20mcd
1904200W5D
white
3,2V DC
–
2000mcd at 20mcd
Maximale Frontplattenstärke 5,5mm /
Maximum panel thickness 5.5mm
5
11,5
ø 9,5
7
14
12
SW 10
M 8 x 0,75 Anode
anode
Kathode
cathode
Außenreflektor mit Vorwiderstand IP67 /
Prominent (exterior) bezel with resistor IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19040253
red
12V DC
20mA DC
80mcd
19040251
green
12V DC
20mA DC
32mcd
19040252
yellow
12V DC
20mA DC
32mcd
19040257
blue
12V DC
20mA DC
60mcd
19040353
red
24V DC
20mA DC
80mcd
19040351
green
24V DC
20mA DC
32mcd
19040352
yellow
24V DC
20mA DC
32mcd
19040357
blue
24V DC
20mA DC
60mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19041253
red
12V DC
20mA DC
80mcd
19041251
green
12V DC
20mA DC
32mcd
19041252
yellow
12V DC
20mA DC
32mcd
19041257
blue
12V DC
20mA DC
60mcd
19041353
red
24V DC
20mA DC
80mcd
19041351
green
24V DC
20mA DC
32mcd
19041352
yellow
24V DC
20mA DC
32mcd
19041357
blue
24V DC
20mA DC
60mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19042253
red
12V DC
20mA DC
80mcd
19042251
green
12V DC
20mA DC
32mcd
19042252
yellow
12V DC
20mA DC
32mcd
19042257
blue
12V DC
20mA DC
60mcd
19042353
red
24V DC
20mA DC
80mcd
19042351
green
24V DC
20mA DC
32mcd
19042352
yellow
24V DC
20mA DC
32mcd
19042357
blue
24V DC
20mA DC
60mcd
Maximale Frontplattenstärke 5,5mm /
Maximum panel thickness 5.5mm
Andere Spannungen auf Anfrage /
Other voltages on request
M8 x 0,75
44
6
15
ø 9,5
SW 10
2,8 x 0,8
9
