45 / 77
6mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
45

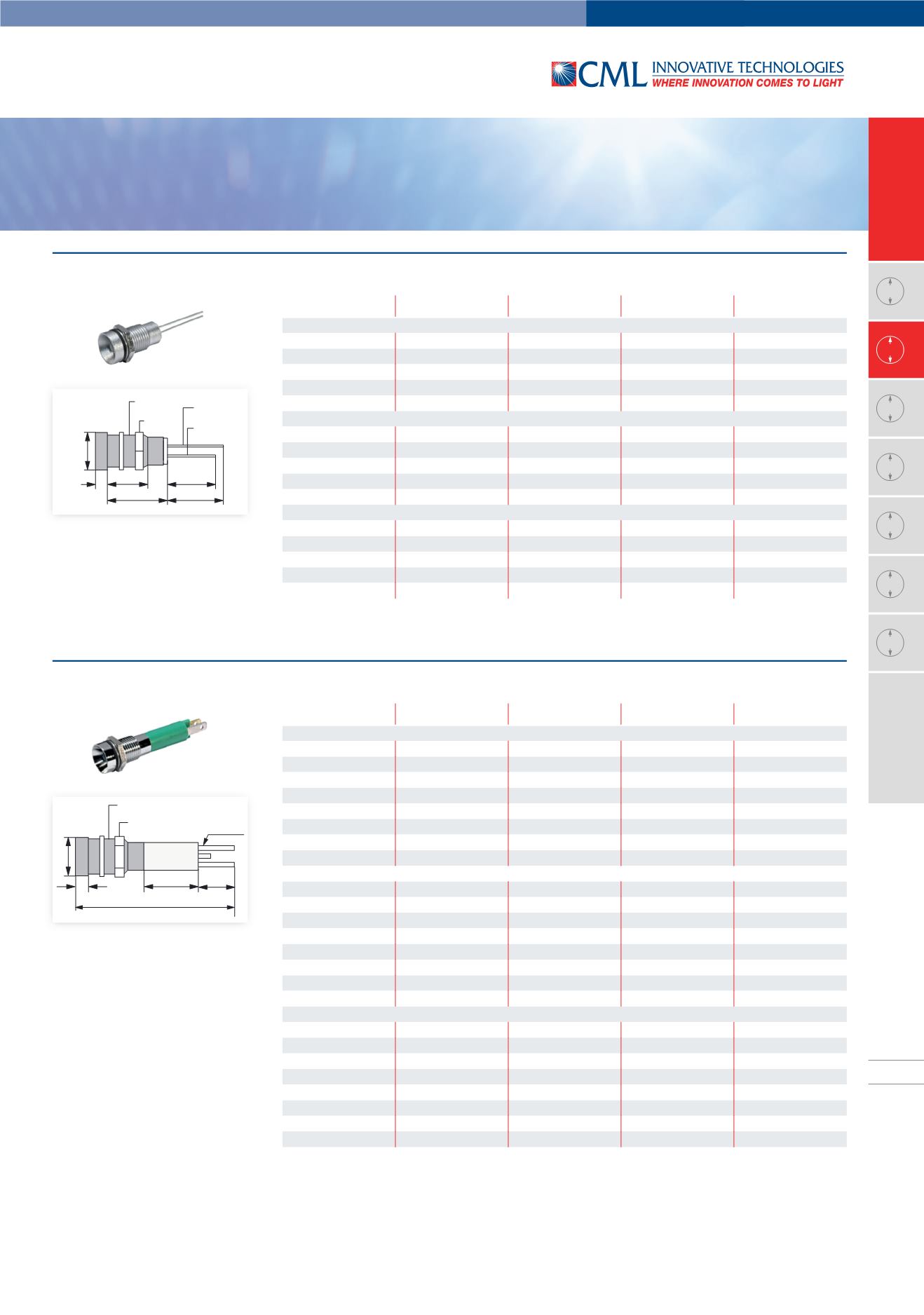

LED Signalleuchten
LED Panel Mount Indicators
Innenreflektor ohne Vorwiderstand IP40 /
Recessed (interior) bezel without resistor IP40
Part Number
Colour
Typ. Forward Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19050003
red
2,0V DC
–
80mcd at 20mA
19050001
green
2,2V DC
–
32mcd at 20mA
19050002
yellow
2,1V DC
–
32mcd at 20mA
19050007
blue
4,5V DC
–
60mcd at 20mcd
1905000W5D
white
3,2V DC
–
2000mcd at 20mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19051003
red
2,0V DC
–
80mcd at 20mA
19051001
green
2,2V DC
–
32mcd at 20mA
19051002
yellow
2,1V DC
–
32mcd at 20mA
19051007
blue
4,5V DC
–
60mcd at 20mcd
1905100W5D
white
3,2V DC
–
2000mcd at 20mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19052003
red
2,0V DC
–
80mcd at 20mA
19052001
green
2,2V DC
–
32mcd at 20mA
19052002
yellow
2,1V DC
–
32mcd at 20mA
19052007
blue
4,5V DC
–
60mcd at 20mcd
1905200W5D
white
3,2V DC
–
2000mcd at 20mcd
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
15
ø 9,5
10
3
SW 10
M 8 x 0,75
12
14
Anode
anode
Kathode
cathode
Innenreflektor mit Vorwiderstand IP67 /
Recessed (interior) bezel with resistor IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19050253
red
12V DC
20mA DC
80mcd
19050251
green
12V DC
20mA DC
32mcd
19050252
yellow
12V DC
20mA DC
32mcd
19050257
blue
12V DC
20mA DC
60mcd
19050353
red
24V DC
20mA DC
80mcd
19050351
green
24V DC
20mA DC
32mcd
19050352
yellow
24V DC
20mA DC
32mcd
19050357
blue
24V DC
20mA DC
60mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19051253
red
12V DC
20mA DC
80mcd
19051251
green
12V DC
20mA DC
32mcd
19051252
yellow
12V DC
20mA DC
32mcd
19051257
blue
12V DC
20mA DC
60mcd
19051353
red
24V DC
20mA DC
80mcd
19051351
green
24V DC
20mA DC
32mcd
19051352
yellow
24V DC
20mA DC
32mcd
19051357
blue
24V DC
20mA DC
60mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19052253
red
12V DC
20mA DC
80mcd
19052251
green
12V DC
20mA DC
32mcd
19052252
yellow
12V DC
20mA DC
32mcd
19052257
blue
12V DC
20mA DC
60mcd
19052353
red
24V DC
20mA DC
80mcd
19052351
green
24V DC
20mA DC
32mcd
19052352
yellow
24V DC
20mA DC
32mcd
19052357
blue
24V DC
20mA DC
60mcd
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
Andere Spannungen auf Anfrage /
Other voltages on request
M8 x 0,75
41
3
15
ø 9,5
SW 10
2,8 x 0,8
9
