41

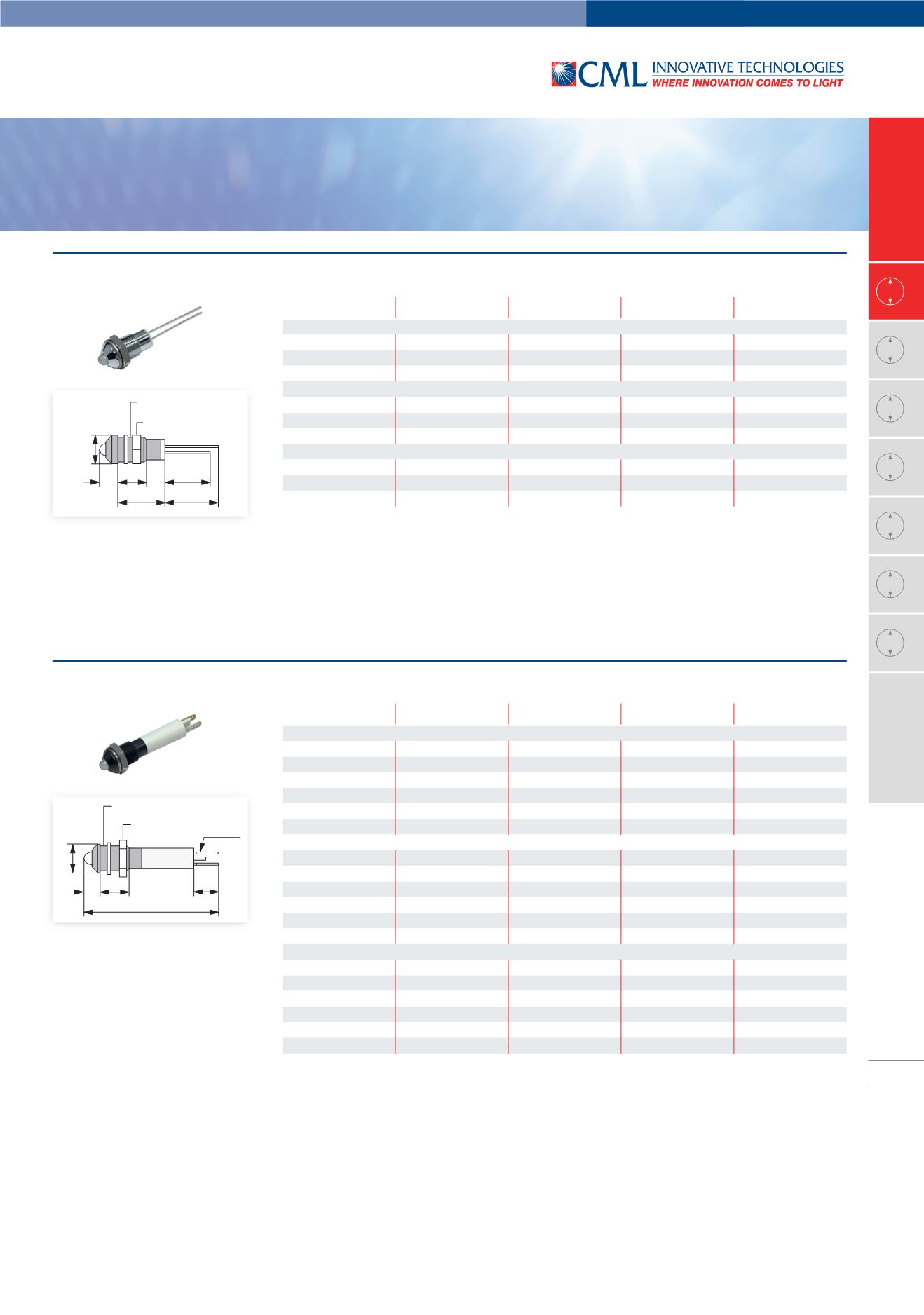

LED Signalleuchten
LED Panel Mount Indicators
Außenreflektor zweifarbig ohne Vorwiderstand IP40 /
Prominent (exterior) bezel bi-colour without resistor IP40
Außenreflektor zweifarbig mit Vorwiderstand IP40 /
Prominent (exterior) bezel bi-colour with resistor IP40
Part Number
Colour
Typ. Forward Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19020004
red/green
2,0/2,2V DC
–
40/40mcd at 20mA
19020005
red/yellow
2,0/2,1V DC
–
40/20mcd at 20mA
19020006
green/yellow
2,2/2,1V DC
–
40/20mcd at 20mA
Schwarzverchromter Metallreflektor /
Black chrome bezel
19021004
red/green
2,0/2,2V DC
–
40/40mcd at 20mA
19021005
red/yellow
2,0/2,1V DC
–
40/20mcd at 20mA
19021006
green/yellow
2,2/2,1V DC
–
40/20mcd at 20mA
Mattverchromter Metallreflektor /
Matt chrome bezel
19022004
red/green
2,0/2,2V DC
–
40/40mcd at 20mA
19022005
red/yellow
2,0/2,1V DC
–
40/20mcd at 20mA
19022006
green/yellow
2,2/2,1V DC
–
40/20mcd at 20mA
Maximale Frontplattenstärke 5,5mm /
Maximum panel thickness 5.5mm
Farbwechsel durch Umpolung der Versorgungsspannung
This colour is changed by changing polarity of the supply voltage.
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19020254
red/green
12V DC
20mA DC
40/40mcd
19020255
red/yellow
12V DC
20mA DC
40/20mcd
19020256
green/yellow
12V DC
20mA DC
40/20mcd
19020354
red/green
24V DC
15mA DC
30/30mcd
19020355
red/yellow
24V DC
15mA DC
30/15mcd
19020356
green/yellow
24V DC
15mA DC
30/15mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19021254
red/green
12V DC
20mA DC
40/40mcd
19021255
red/yellow
12V DC
20mA DC
40/20mcd
19021256
green/yellow
12V DC
20mA DC
40/20mcd
19021354
red/green
24V DC
15mA DC
30/30mcd
19021355
red/yellow
24V DC
15mA DC
30/15mcd
19021356
green/yellow
24V DC
15mA DC
30/15mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19022254
red/green
12V DC
20mA DC
40/40mcd
19022255
red/yellow
12V DC
20mA DC
40/20mcd
19022256
green/yellow
12V DC
20mA DC
40/20mcd
19022354
red/green
24V DC
15mA DC
30/30mcd
19022355
red/yellow
24V DC
15mA DC
30/15mcd
19022356
green/yellow
24V DC
15mA DC
30/15mcd
Maximale Frontplattenstärke 5,5mm /
Maximum panel thickness 5.5mm
Farbwechsel durch Umpolung der Versorgungsspannung
This colour is changed by changing polarity of the supply voltage.
Andere Spannungen auf Anfrage /
Other voltages on request
11,5
7
SW 8
M 6 x 0,5
13
11
4,5
ø 7
4
SW 8
ø 7
M6 x 0,5
2,0 x 0,5
6
33
7
