42 / 77
6mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
42

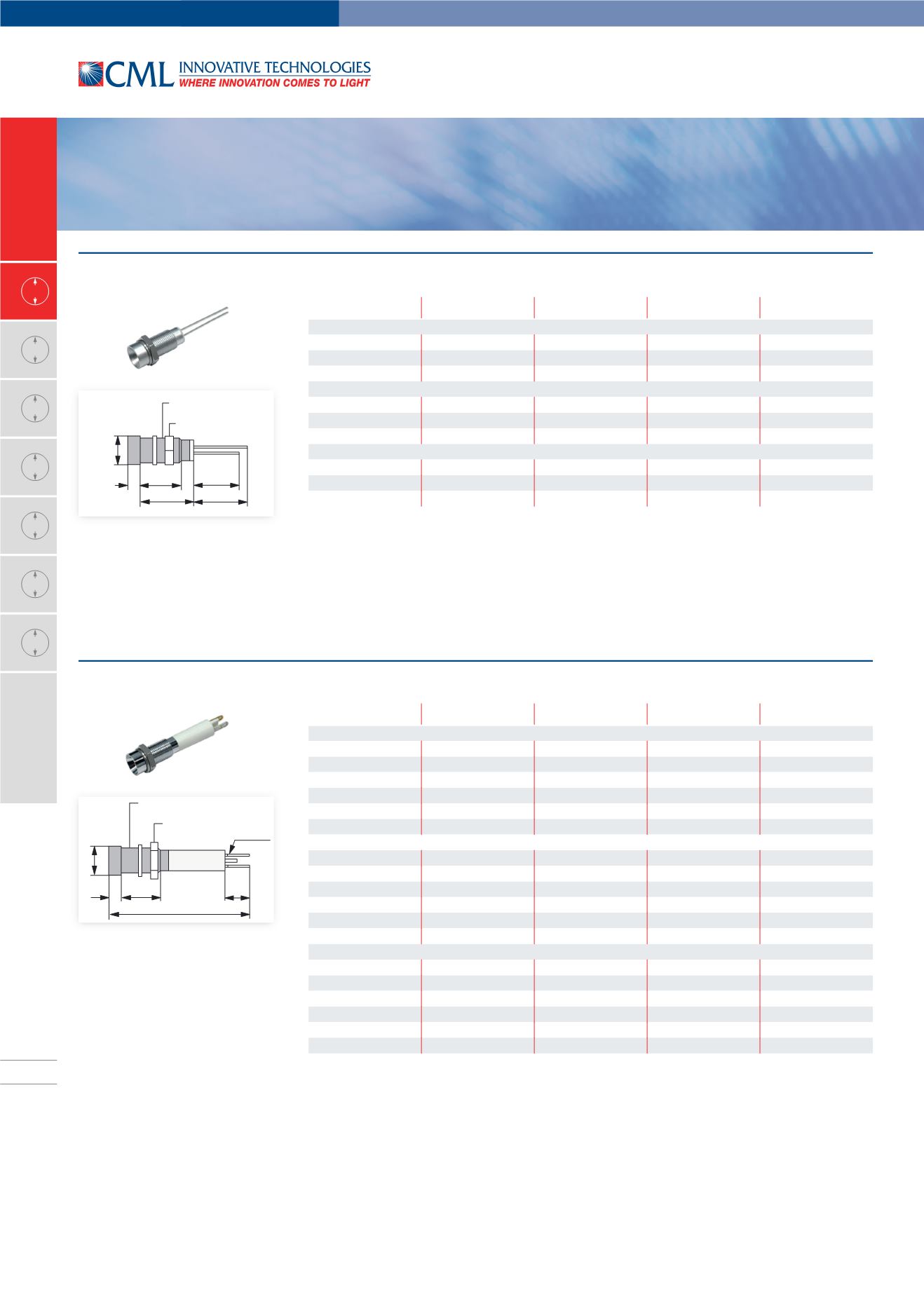

LED Signalleuchten
LED Panel Mount Indicators
Innenreflektor zweifarbig ohne Vorwiderstand IP40 /
Recessed (interior) bezel bi-colour without resistor IP40
Innenreflektor zweifarbig mit Vorwiderstand IP40 /
Recessed (interior) bezel bi-colour with resistor IP40
Part Number
Colour
Typ. Forward Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19030004
red/green
2,0/2,2V DC
–
40/40mcd at 20mA
19030005
red/yellow
2,0/2,1V DC
–
40/20mcd at 20mA
19030006
green/yellow
2,2/2,1V DC
–
40/20mcd at 20mA
Schwarzverchromter Metallreflektor /
Black chrome bezel
19031004
red/green
2,0/2,2V DC
–
40/40mcd at 20mA
19031005
red/yellow
2,0/2,1V DC
–
40/20mcd at 20mA
19031006
green/yellow
2,2/2,1V DC
–
40/20mcd at 20mA
Mattverchromter Metallreflektor /
Matt chrome bezel
19032004
red/green
2,0/2,2V DC
–
40/40mcd at 20mA
19032005
red/yellow
2,0/2,1V DC
–
40/20mcd at 20mA
19032006
green/yellow
2,2/2,1V DC
–
40/20mcd at 20mA
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
Farbwechsel durch Umpolung der Versorgungsspannung
This colour is changed by changing polarity of the supply voltage.
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19030254
red/green
12V DC
20mA DC
40/40mcd
19030255
red/yellow
12V DC
20mA DC
40/20mcd
19030256
green/yellow
12V DC
20mA DC
40/20mcd
19030354
red/green
24V DC
15mA DC
30/30mcd
19030355
red/yellow
24V DC
15mA DC
30/15mcd
19030356
green/yellow
24V DC
15mA DC
30/15mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19031254
red/green
12V DC
20mA DC
40/40mcd
19031255
red/yellow
12V DC
20mA DC
40/20mcd
19031256
green/yellow
12V DC
20mA DC
40/20mcd
19031354
red/green
24V DC
15mA DC
30/30mcd
19031355
red/yellow
24V DC
15mA DC
30/15mcd
19031356
green/yellow
24V DC
15mA DC
30/15mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19032254
red/green
12V DC
20mA DC
40/40mcd
19032255
red/yellow
12V DC
20mA DC
40/20mcd
19032256
green/yellow
12V DC
20mA DC
40/20mcd
19032354
red/green
24V DC
15mA DC
30/30mcd
19032355
red/yellow
24V DC
15mA DC
30/15mcd
19032356
green/yellow
24V DC
15mA DC
30/15mcd
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
Farbwechsel durch Umpolung der Versorgungsspannung
This colour is changed by changing polarity of the supply voltage.
Andere Spannungen auf Anfrage / Other voltages on request
13
10
ø 7
3
13
11
SW 8
M 6 x 0,5
M6 x 0,5
6
34
10
3
ø 7
SW 8
2,0 x 0,5
