40 / 77
6mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
40

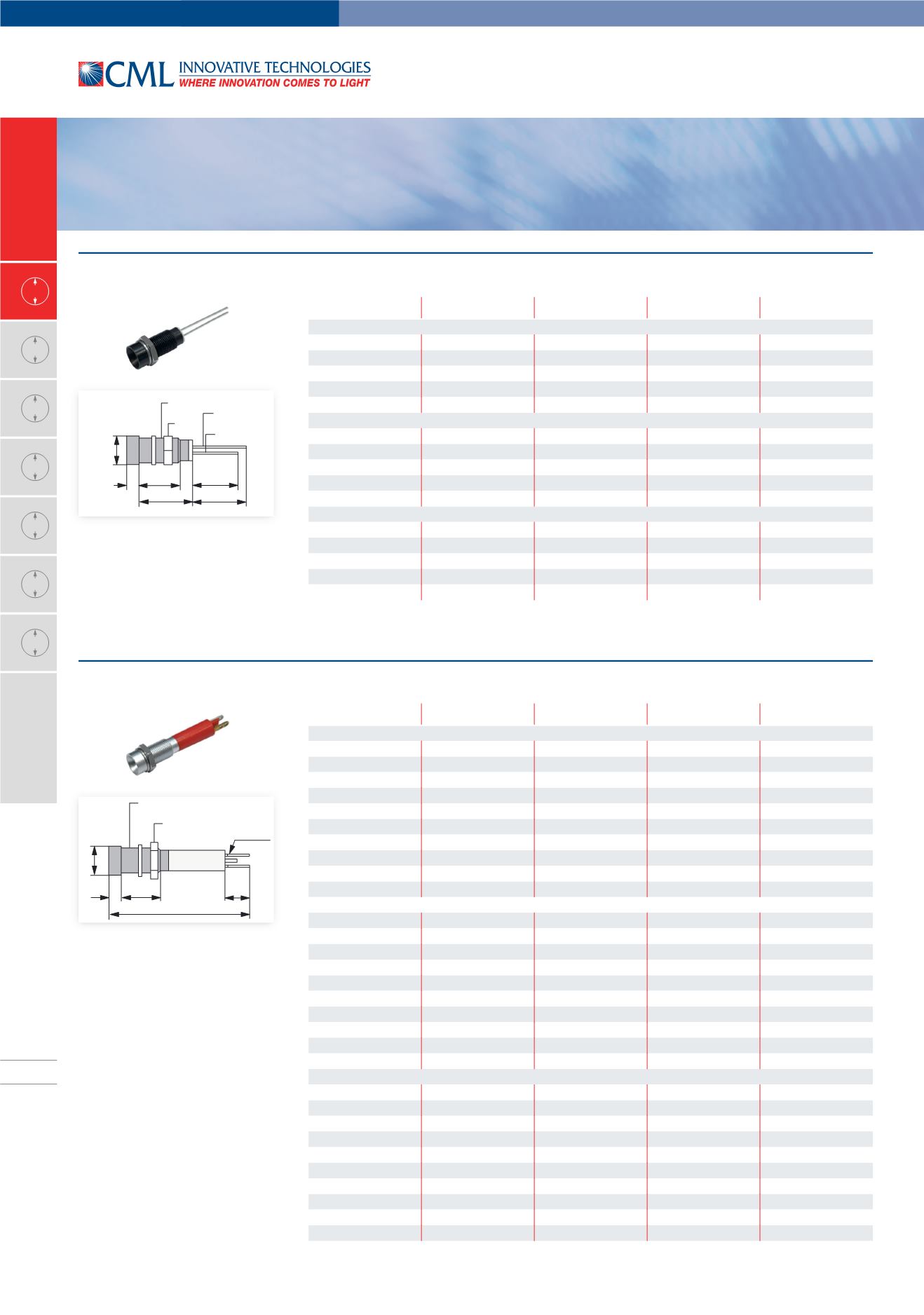

LED Signalleuchten
LED Panel Mount Indicators
Innenreflektor ohne Vorwiderstand IP40 /
Recessed (interior) bezel without resistor IP40
Innenreflektor mit Vorwiderstand IP40 /
Recessed (interior) bezel with resistor IP40
Part Number
Colour
Typ. Forward Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19030003
red
2,0V DC
–
13mcd at 20mA
19030001
green
2,2V DC
–
8mcd at 20mA
19030002
yellow
2,1V DC
–
8mcd at 20mA
19030007
blue
4,5V DC
–
40mcd at 20mcd
1903000W3D
white
3,2V DC
–
3000mcd at 20mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19031003
red
2,0V DC
–
13mcd at 20mA
19031001
green
2,2V DC
–
8mcd at 20mA
19031002
yellow
2,1V DC
–
8mcd at 20mA
19031007
blue
4,5V DC
–
40mcd at 20mcd
1903100W3D
white
3,2V DC
–
3000mcd at 20mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19032003
red
2,0V DC
–
13mcd at 20mA
19032001
green
2,2V DC
–
8mcd at 20mA
19032002
yellow
2,1V DC
–
8mcd at 20mA
19032007
blue
4,5V DC
–
40mcd at 20mcd
1903200W3D
white
3,2V DC
–
3000mcd at 20mcd
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19030253
red
12V DC
20mA DC
13mcd
19030251
green
12V DC
20mA DC
8mcd
19030252
yellow
12V DC
20mA DC
8mcd
19030257
blue
12V DC
18mA DC
36mcd
1903025W
white
12V DC
6mA DC
900mcd
19030353
red
24V DC
15mA DC
8mcd
19030351
green
24V DC
15mA DC
6mcd
19030352
yellow
24V DC
15mA DC
6mcd
19030357
blue
24V DC
15mA DC
26mcd
1903035W
white
24V DC
7mA DC
1050mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19031253
red
12V DC
20mA DC
13mcd
19031251
green
12V DC
20mA DC
8mcd
19031252
yellow
12V DC
20mA DC
8mcd
19031257
blue
12V DC
18mA DC
36mcd
1903125W
white
12V DC
6mA DC
900mcd
19031353
red
24V DC
15mA DC
8mcd
19031351
green
24V DC
15mA DC
6mcd
19031352
yellow
24V DC
15mA DC
6mcd
19031357
blue
24V DC
15mA DC
26mcd
1903135W
white
24V DC
7mA DC
1050mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19032253
red
12V DC
20mA DC
13mcd
19032251
green
12V DC
20mA DC
8mcd
19032252
yellow
12V DC
20mA DC
8mcd
19032257
blue
12V DC
18mA DC
36mcd
1903225W
white
12V DC
6mA DC
900mcd
19032353
red
24V DC
15mA DC
8mcd
19032351
green
24V DC
15mA DC
6mcd
19032352
yellow
24V DC
15mA DC
6mcd
19032357
blue
24V DC
15mA DC
26mcd
1903235W
white
24V DC
7mA DC
1050mcd
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
Andere Spannungen auf Anfrage /
Other voltages on request
13
10
ø 7
3
13
11
Anode
anode
Kathode
cathode
SW 8
M 6 x 0,5
M6 x 0,5
6
34
10
3
ø 7
SW 8
2,0 x 0,5
