6mm

8mm

12mm

14mm

16mm

19mm

22mm

EINBAUDURCHMESSER

MOUNTING HOLE

ZUBEHÖR

ACCESSORIES

47

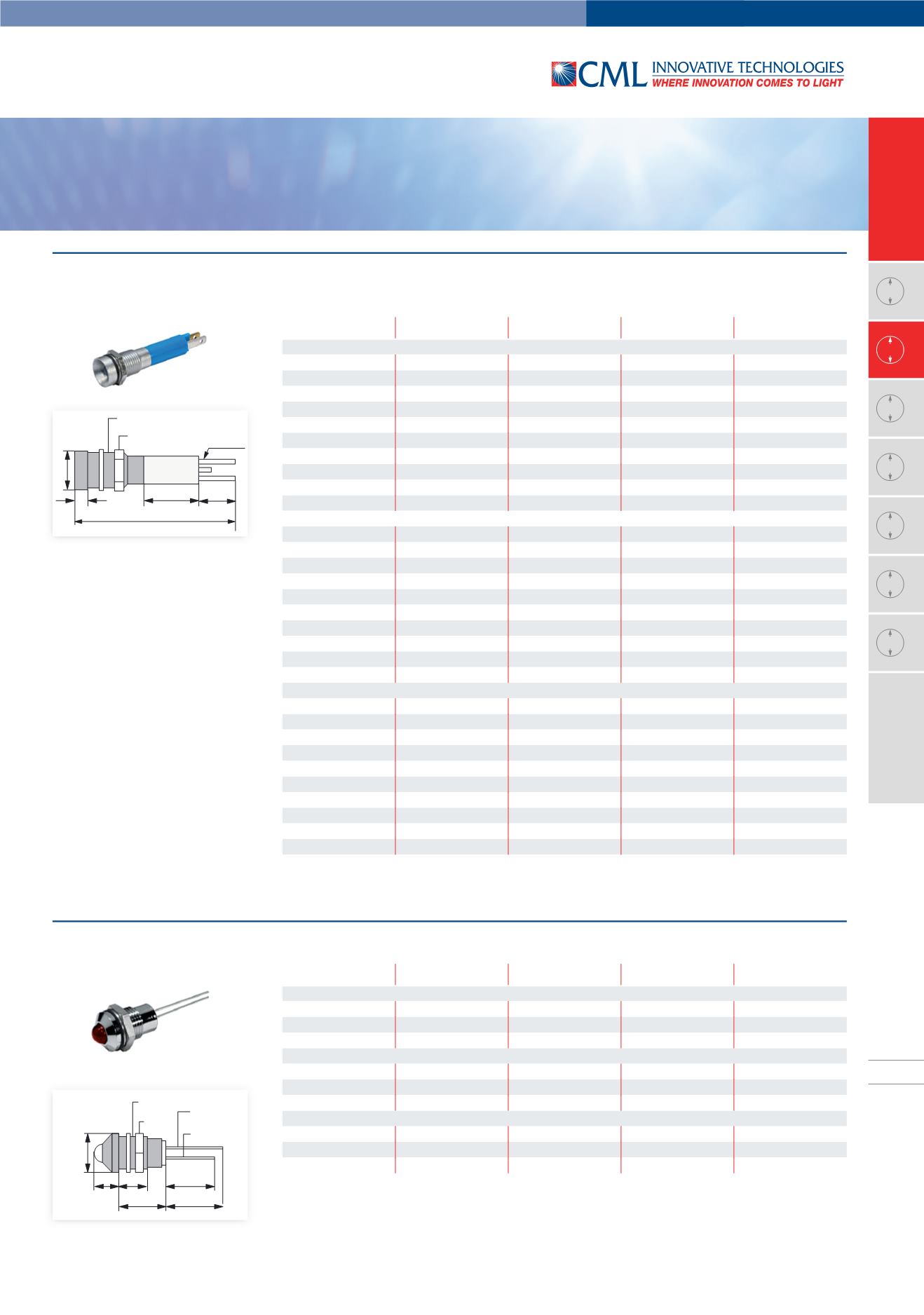

LED Signalleuchten

LED Panel Mount Indicators

Innenreflektor Sonnenlicht tauglich mit Vorwiderstand und Einweggleichter IP67 /

Recessed (interior) bezel sunlight visible with resistor and half-wave rectifier IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19090250

red

12V AC/DC

9mA AC / 17mA DC

1200mcd

19090255

green

12V AC/DC

9mA AC / 17mA DC

1300mcd

19090252

yellow

12V AC/DC

9mA AC / 17mA DC

1100mcd

19090257

blue

12V AC/DC

9mA AC / 17mA DC

600mcd

1909025W

white

12V AC/DC

3mA AC / 6mA DC

1000mcd

19090350

red

24V AC/DC

9mA AC / 17mA DC

1200mcd

19090355

green

24V AC/DC

9mA AC / 17mA DC

1300mcd

19090352

yellow

24V AC/DC

9mA AC / 17mA DC

1100mcd

19090357

blue

24V AC/DC

9mA AC / 17mA DC

600mcd

1909035W

white

24V AC/DC

3mA AC / 6mA DC

1000mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

19091250

red

12V AC/DC

9mA AC / 17mA DC

1200mcd

19091255

green

12V AC/DC

9mA AC / 17mA DC

1300mcd

19091252

yellow

12V AC/DC

9mA AC / 17mA DC

1100mcd

19091257

blue

12V AC/DC

9mA AC / 17mA DC

600mcd

1909125W

white

12V AC/DC

3mA AC / 6mA DC

1000mcd

19091350

red

24V AC/DC

9mA AC / 17mA DC

1200mcd

19091355

green

24V AC/DC

9mA AC / 17mA DC

1300mcd

19091352

yellow

24V AC/DC

9mA AC / 17mA DC

1100mcd

19091357

blue

24V AC/DC

9mA AC / 17mA DC

600mcd

1909135W

white

24V AC/DC

3mA AC / 6mA DC

1000mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

19092250

red

12V AC/DC

9mA AC / 17mA DC

1200mcd

19092255

green

12V AC/DC

9mA AC / 17mA DC

1300mcd

19092252

yellow

12V AC/DC

9mA AC / 17mA DC

1100mcd

19092257

blue

12V AC/DC

9mA AC / 17mA DC

600mcd

1909225W

white

12V AC/DC

3mA AC / 6mA DC

1000mcd

19092350

red

24V AC/DC

9mA AC / 17mA DC

1200mcd

19092355

green

24V AC/DC

9mA AC / 17mA DC

1300mcd

19092352

yellow

24V AC/DC

9mA AC / 17mA DC

1100mcd

19092357

blue

24V AC/DC

9mA AC / 17mA DC

600mcd

1909235W

white

24V AC/DC

3mA AC / 6mA DC

1000mcd

Lichtstärkedaten der verwendeten LED bei DC-Betrieb /

Luminous intensity data of the LED on direct voltage

Maximale Frontplattenstärke 8mm /

Maximum panel thickness 8mm

Andere Spannungen auf Anfrage /

Other voltages on request

M8 x 0,75

41

3

15

ø 9,5

SW 10

2,8 x 0,8

9

Außenreflektor blinkend IP40 /

Prominent (exterior) bezel flashing IP40

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19060003

red

3,5-13V DC

38-56mA DC

80mcd at 20mA

19060001

green

3,5-13V DC

38-56mA DC

32mcd at 20mA

19060002

yellow

3,5-13V DC

38-56mA DC

32mcd at 20mA

Schwarzverchromter Metallreflektor /

Black chrome bezel

19061003

red

3,5-13V DC

38-56mA DC

80mcd at 20mA

19061001

green

3,5-13V DC

38-56mA DC

32mcd at 20mA

19061002

yellow

3,5-13V DC

38-56mA DC

32mcd at 20mA

Mattverchromter Metallreflektor /

Matt chrome bezel

19062003

red

3,5-13V DC

38-56mA DC

80mcd at 20mA

19062001

green

3,5-13V DC

38-56mA DC

32mcd at 20mA

19062002

yellow

3,5-13V DC

38-56mA DC

32mcd at 20mA

Maximale Frontplattenstärke 5,5mm /

Maximum panel thickness 5.5mm

5

11,5

ø 9,5

7

14

12

SW 10

M 8 x 0,75 Anode

anode

Kathode

cathode
