48

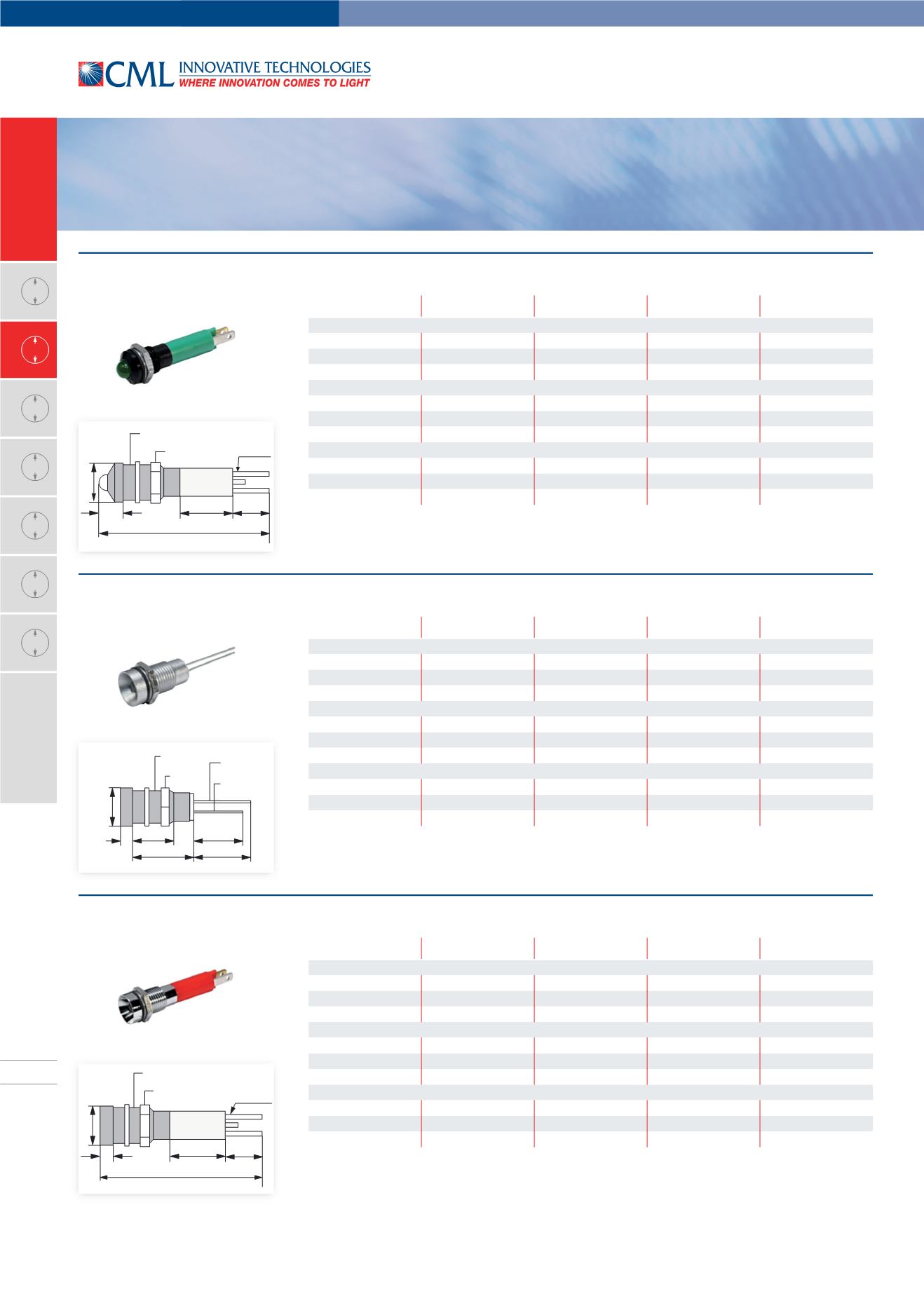

LED Signalleuchten
LED Panel Mount Indicators
Außenreflektor blinkend IP67 /
Prominent (exterior) bezel flashing IP67
Innenreflektor blinkend IP40 /
Recessed (interior) bezel flashing IP40
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19060353
red
24V DC
38-56mA DC
80mcd at 20mA
19060351
green
24V DC
38-56mA DC
32mcd at 20mA
19060352
yellow
24V DC
38-56mA DC
32mcd at 20mA
Schwarzverchromter Metallreflektor /
Black chrome bezel
19061353
red
24V DC
38-56mA DC
80mcd at 20mA
19061351
green
24V DC
38-56mA DC
32mcd at 20mA
19061352
yellow
24V DC
38-56mA DC
32mcd at 20mA
Mattverchromter Metallreflektor /
Matt chrome bezel
19062353
red
24V DC
38-56mA DC
80mcd at 20mA
19062351
green
24V DC
38-56mA DC
32mcd at 20mA
19062352
yellow
24V DC
38-56mA DC
32mcd at 20mA
Maximale Frontplattenstärke 5,5mm /
Maximum panel thickness 5.5mm
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19070003
red
3,5-13V DC
38-56mA DC
80mcd at 20mA
19070001
green
3,5-13V DC
38-56mA DC
32mcd at 20mA
19070002
yellow
3,5-13V DC
38-56mA DC
32mcd at 20mA
Schwarzverchromter Metallreflektor /
Black chrome bezel
19071003
red
3,5-13V DC
38-56mA DC
80mcd at 20mA
19071001
green
3,5-13V DC
38-56mA DC
32mcd at 20mA
19071002
yellow
3,5-13V DC
38-56mA DC
32mcd at 20mA
Mattverchromter Metallreflektor /
Matt chrome bezel
19072003
red
3,5-13V DC
38-56mA DC
80mcd at 20mA
19072001
green
3,5-13V DC
38-56mA DC
32mcd at 20mA
19072002
yellow
3,5-13V DC
38-56mA DC
32mcd at 20mA
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
M8 x 0,75
44
6
15
ø 9,5
SW 10
2,8 x 0,8
9
15
ø 9,5
10
3
SW 10
M 8 x 0,75
12
14
Anode
anode
Kathode
cathode
Innenreflektor blinkend IP67 /
Recessed (interior) bezel flashing IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor / Satin chrome bezel
19070353
red
24V DC
38-56mA DC
80mcd at 20mA
19070351
green
24V DC
38-56mA DC
32mcd at 20mA
19070352
yellow
24V DC
38-56mA DC
32mcd at 20mA
Schwarzverchromter Metallreflektor / Black chrome bezel
19071353
red
24V DC
38-56mA DC
80mcd at 20mA
19071351
green
24V DC
38-56mA DC
32mcd at 20mA
19071352
yellow
24V DC
38-56mA DC
32mcd at 20mA
Mattverchromter Metallreflektor / Matt chrome bezel
19072353
red
24V DC
38-56mA DC
80mcd at 20mA
19072351
green
24V DC
38-56mA DC
32mcd at 20mA
19072352
yellow
24V DC
38-56mA DC
32mcd at 20mA
Maximale Frontplattenstärke 8mm /
Maximum panel thickness 8mm
M8 x 0,75
41
3
15
ø 9,5
SW 10
2,8 x 0,8
9
