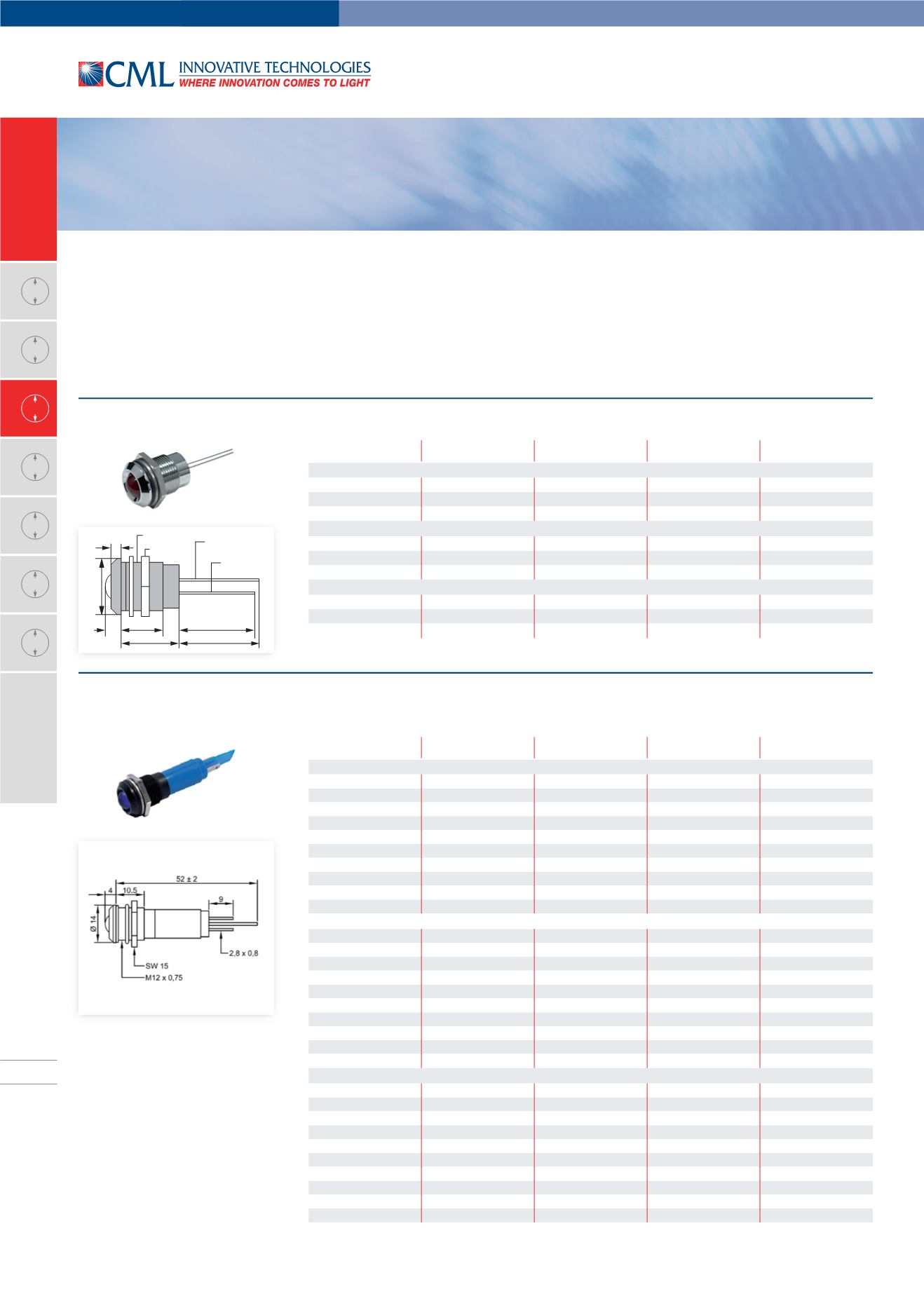

EINBAUDURCHMESSER

MOUNTING HOLE

ZUBEHÖR

ACCESSORIES

54

LED Signalleuchten

LED Panel Mount Indicators

Standardreflektor ohne Vorwiderstand IP40 /

Standard bezel without resistor IP40

Part Number

Colour

Typ. Forward Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

192D0000

red

2,0V DC

60mcd at 20mA

192D0001

green

2,2V DC

40mcd at 20mA

192D0002

yellow

2,1V DC

40mcd at 20mA

Schwarzverchromter Metallreflektor /

Black chrome bezel

192D1000

red

2,0V DC

60mcd at 20mA

192D1001

green

2,2V DC

40mcd at 20mA

192D1002

yellow

2,1V DC

40mcd at 20mA

Mattverchromter Metallreflektor /

Matt chrome bezel

192D2000

red

2,0V DC

60mcd at 20mA

192D2001

green

2,2V DC

40mcd at 20mA

192D2002

yellow

2,1V DC

40mcd at 20mA

Maximale Frontplattenstärke 8,5mm /

Maximum panel thickness 8.5mm

Anode

anode

Kathode

cathode

19

20

ø 14

M 12 x 0,75

SW 15

10,5

14,5

4

2,5

Standardreflektor Sonnenlicht tauglich mit Vorwiderstand und Einweggleichrichter IP67 /

Standard bezel sunlight visible with resistor and half-wave rectifier IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

192D0250

red

12V AC/DC

9mA AC / 17mA DC

400mcd

192D0251

green

12V AC/DC

9mA AC / 17mA DC

1200mcd

192D0252

yellow

12V AC/DC

9mA AC / 17mA DC

350mcd

192D0257

blue

12V AC/DC

9mA AC / 17mA DC

450mcd

192D025W

white

12V AC/DC

9mA AC / 17mA DC

850mcd

192D0350

red

24V AC/DC

9mA AC / 17mA DC

400mcd

192D0351

green

24V AC/DC

9mA AC / 17mA DC

1200mcd

192D0352

yellow

24V AC/DC

9mA AC / 17mA DC

350mcd

192D0357

blue

24V AC/DC

9mA AC / 17mA DC

450mcd

192D035W

white

24V AC/DC

9mA AC / 17mA DC

850mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

192D1250

red

12V AC/DC

9mA AC / 17mA DC

400mcd

192D1251

green

12V AC/DC

9mA AC / 17mA DC

1200mcd

192D1252

yellow

12V AC/DC

9mA AC / 17mA DC

350mcd

192D1257

blue

12V AC/DC

9mA AC / 17mA DC

450mcd

192D125W

white

12V AC/DC

9mA AC / 17mA DC

850mcd

192D1350

red

24V AC/DC

9mA AC / 17mA DC

400mcd

192D1351

green

24V AC/DC

9mA AC / 17mA DC

1200mcd

192D1352

yellow

24V AC/DC

9mA AC / 17mA DC

350mcd

192D1357

blue

24V AC/DC

9mA AC / 17mA DC

450mcd

192D135W

white

24V AC/DC

9mA AC / 17mA DC

850mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

192D2250

red

12V AC/DC

9mA AC / 17mA DC

400mcd

192D2251

green

12V AC/DC

9mA AC / 17mA DC

1200mcd

192D2252

yellow

12V AC/DC

9mA AC / 17mA DC

350mcd

192D2257

blue

12V AC/DC

9mA AC / 17mA DC

450mcd

192D225W

white

12V AC/DC

9mA AC / 17mA DC

850mcd

192D2350

red

24V AC/DC

9mA AC / 17mA DC

400mcd

192D2351

green

24V AC/DC

9mA AC / 17mA DC

1200mcd

192D2352

yellow

24V AC/DC

9mA AC / 17mA DC

350mcd

192D2357

blue

24V AC/DC

9mA AC / 17mA DC

450mcd

192D235W

white

24V AC/DC

9mA AC / 17mA DC

850mcd

Lichtstärkedaten der verwendeten LED bei DC-Betrieb /

Luminous intensity data of the LED on direct voltage

Maximale Frontplattenstärke 8,5mm /

Maximum panel thickness 8.5mm

Andere Spannungen auf Anfrage /

Other voltages on request

LED Signalleuchten für den Einbaudurchmesser von 12mm (+0,2mm) sind mit hellen, ver-

schiedenfarbigen, diffusen 8mm LEDs bzw. Linsen bestückt. Sie sind mit hochglanzverchrom-

ten, schwarzverchromten oder mattverchromten Messingreflektoren lieferbar. Der Anschluss

erfolgt in der Regel über Flachstecker 2,8 x 0,8mm. Die entsprechenden Flachsteckhülsen

finden Sie auf der Zubehör-Seite. Die Montage der LED Signalleuchten erfolgt mittels der

mitgelieferten Sprengringe und Muttern.

Messingflachstecker = Anode (+)

verzinnter Flachstecker = Kathode (-)

LED panel mount indicators for a 12mm (+0.2mm) mounting hole are manufactured with

high brightness coloured diffused 8mm LEDs or lenses. These LEDs or lenses are fitted in

high quality satin chrome, black chrome or matt chrome metal bezels, supplied with fixing

nut and washer. Connection is usually by faston tab terminals 2.8 x 0.8mm. Suitable crimp

connectors can be found on the page for accessories.

Brass terminals = anode (+)

Tinned terminals = cathode (-)
