60

LED Signalleuchten

LED Panel Mount Indicators

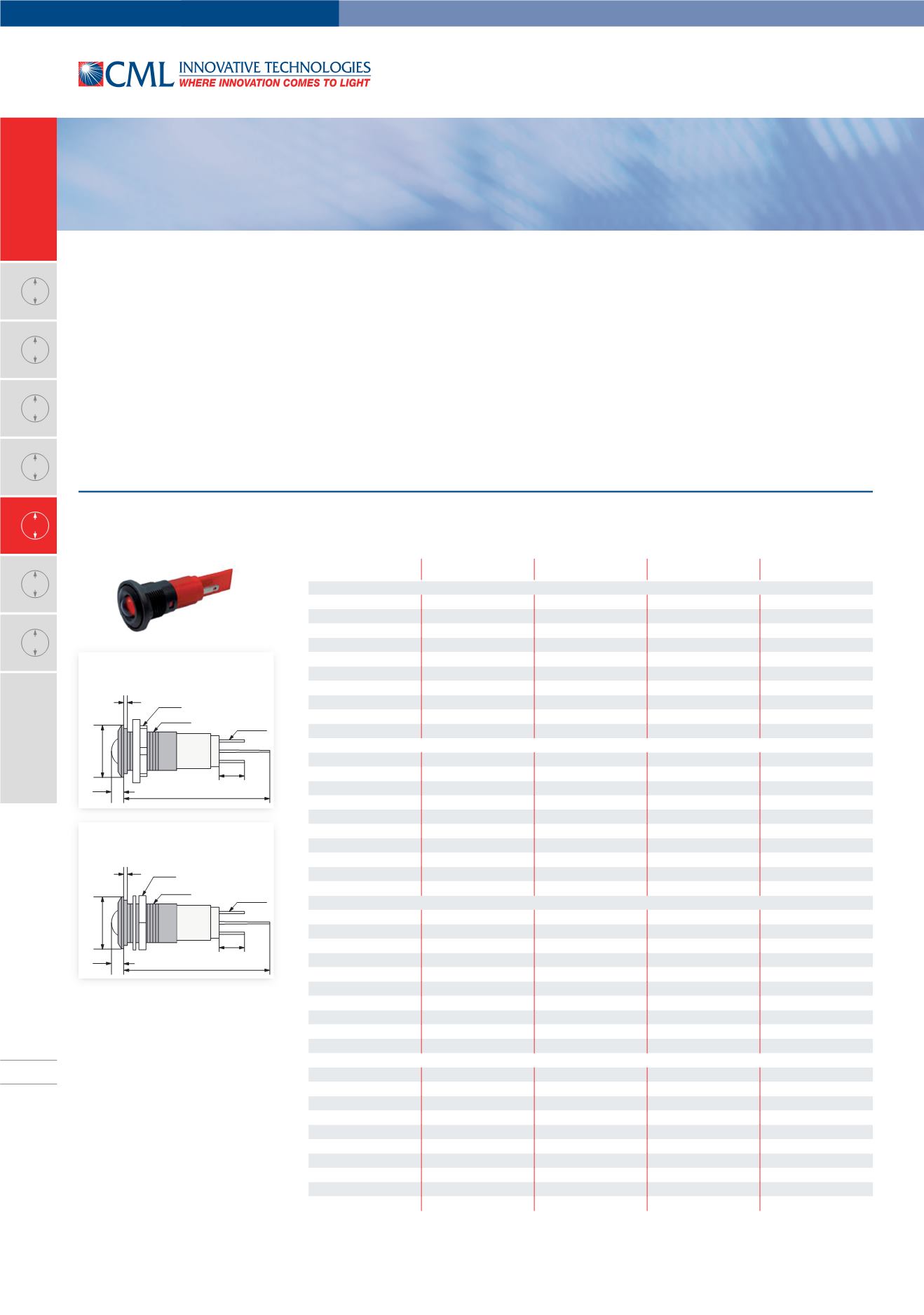

Standardreflektor runde Linse mit Vorwiderstand und Einweggleichrichter IP67 /

Standard bezel round lens with resistor and half-wave rectifier IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Schwarzer Kunststoffreflektor /

Black plastic bezel

19371250

red

12V AC/DC

8mA AC / 16mA DC

1500mcd

19371255

green

12V AC/DC

7mA AC / 14mA DC

1200mcd

19371252

yellow

12V AC/DC

8mA AC / 16mA DC

1000mcd

19371257

blue

12V AC/DC

7mA AC / 14mA DC

350mcd

1937125W

white

12V AC/DC

2,5mA AC / 5mA DC

750mcd

19371350

red

24V AC/DC

8mA AC / 16mA DC

1500mcd

19371355

green

24V AC/DC

7mA AC / 14mA DC

1200mcd

19371352

yellow

24V AC/DC

8mA AC / 16mA DC

1000mcd

19371357

blue

24V AC/DC

7mA AC / 14mA DC

350mcd

1937135W

white

24V AC/DC

2,5mA AC / 5mA DC

750mcd

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19370250M

red

12V AC/DC

8mA AC / 16mA DC

1500mcd

19370255M

green

12V AC/DC

7mA AC / 14mA DC

1200mcd

19370252M

yellow

12V AC/DC

8mA AC / 16mA DC

1000mcd

19370257M

blue

12V AC/DC

7mA AC / 14mA DC

350mcd

1937025WM

white

12V AC/DC

2,5mA AC / 5mA DC

750mcd

19370350M

red

24V AC/DC

8mA AC / 16mA DC

1500mcd

19370355M

green

24V AC/DC

7mA AC / 14mA DC

1200mcd

19370352M

yellow

24V AC/DC

8mA AC / 16mA DC

1000mcd

19370357M

blue

24V AC/DC

7mA AC / 14mA DC

350mcd

1937035WM

white

24V AC/DC

2,5mA AC / 5mA DC

750mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

19371250M

red

12V AC/DC

8mA AC / 16mA DC

1500mcd

19371255M

green

12V AC/DC

7mA AC / 14mA DC

1200mcd

19371252M

yellow

12V AC/DC

8mA AC / 16mA DC

1000mcd

19371257M

blue

12V AC/DC

7mA AC / 14mA DC

350mcd

1937125WM

white

12V AC/DC

2,5mA AC / 5mA DC

750mcd

19371350M

red

24V AC/DC

8mA AC / 16mA DC

1500mcd

19371355M

green

24V AC/DC

7mA AC / 14mA DC

1200mcd

19371352M

yellow

24V AC/DC

8mA AC / 16mA DC

1000mcd

19371357M

blue

24V AC/DC

7mA AC / 14mA DC

350mcd

1937135WM

white

24V AC/DC

2,5mA AC / 5mA DC

750mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

19372250M

red

12V AC/DC

8mA AC / 16mA DC

1500mcd

19372255M

green

12V AC/DC

7mA AC / 14mA DC

1200mcd

19372252M

yellow

12V AC/DC

8mA AC / 16mA DC

1000mcd

19372257M

blue

12V AC/DC

7mA AC / 14mA DC

350mcd

1937225WM

white

12V AC/DC

2,5mA AC / 5mA DC

750mcd

19372350M

red

24V AC/DC

8mA AC / 16mA DC

1500mcd

19372355M

green

24V AC/DC

7mA AC / 14mA DC

1200mcd

19372352M

yellow

24V AC/DC

8mA AC / 16mA DC

1000mcd

19372357M

blue

24V AC/DC

7mA AC / 14mA DC

350mcd

1937235WM

white

24V AC/DC

2,5mA AC / 5mA DC

750mcd

Lichtstärkedaten der verwendeten LED bei DC-Betrieb /

Luminous intensity data of the LED on direct voltage

Maximale Frontplattenstärke 11mm /

Maximum panel thickness 11mm

Andere Spannungen auf Anfrage /

Other voltages on request

52

±

2

9

2,8 x 0,8

M 16 x 1

SW 18

1

4,5

ø 18,3

Flachdichtung /

gasket

Kunststoffausführung

/versionwithblackplasticbezel

52

±

2

9

2,8 x 0,8

M 16 x 1

1

4,5

ø 18,3

Flachdichtung /

gasket

Metallausführung /

versionwithmetalbezel

SW 19

LED Signalleuchten für den Einbaudurchmesser von 16mm (+0,4mm) sind mit hellen, ver-

schiedenfarbigen, diffusen 10mm LEDs bzw. Linsen bestückt.

Zur Auswahl stehen drei Linsenformen:

runde Linse

flache Linse

konische Linse

Sie sind mit hochglanzverchromten, schwarzverchromten oder mattverchromten Messing-

reflektoren sowie schwarzen Kunststoffreflektoren lieferbar. Der Anschluss erfolgt in der

Regel über Flachstecker 2,8 x 0,8mm. Die entsprechenden Flachsteckhülsen finden Sie auf

der Zubehör-Seite. Die Montage der LED Signalleuchten erfolgt mittels der mitgelieferten

Sprengringe und Muttern.

Messingflachstecker = Anode (+)

verzinnter Flachstecker = Kathode (-)

LED panel mount indicators for a 16mm (+0.4mm) mounting hole are manufactured with high

brightness coloured diffused 10mm LEDs or lenses.

These indicators can be delivered with three different lens shapes:

round lens

flat lens

conical lens

These LEDs or lenses are fitted in high quality satin chrome, black chrome or matt chrome

metal bezels or in black plastic bezels, supplied with fixing nut and washer. Connection is

usually by faston tab terminals 2.8 x 0.8mm. Suitable crimp connectors can be found on the

page for accessories.

Brass terminals = anode (+)

Tinned terminals = cathode (-)
