6mm

8mm

12mm

14mm

16mm

19mm

22mm

EINBAUDURCHMESSER

MOUNTING HOLE

ZUBEHÖR

ACCESSORIES

57

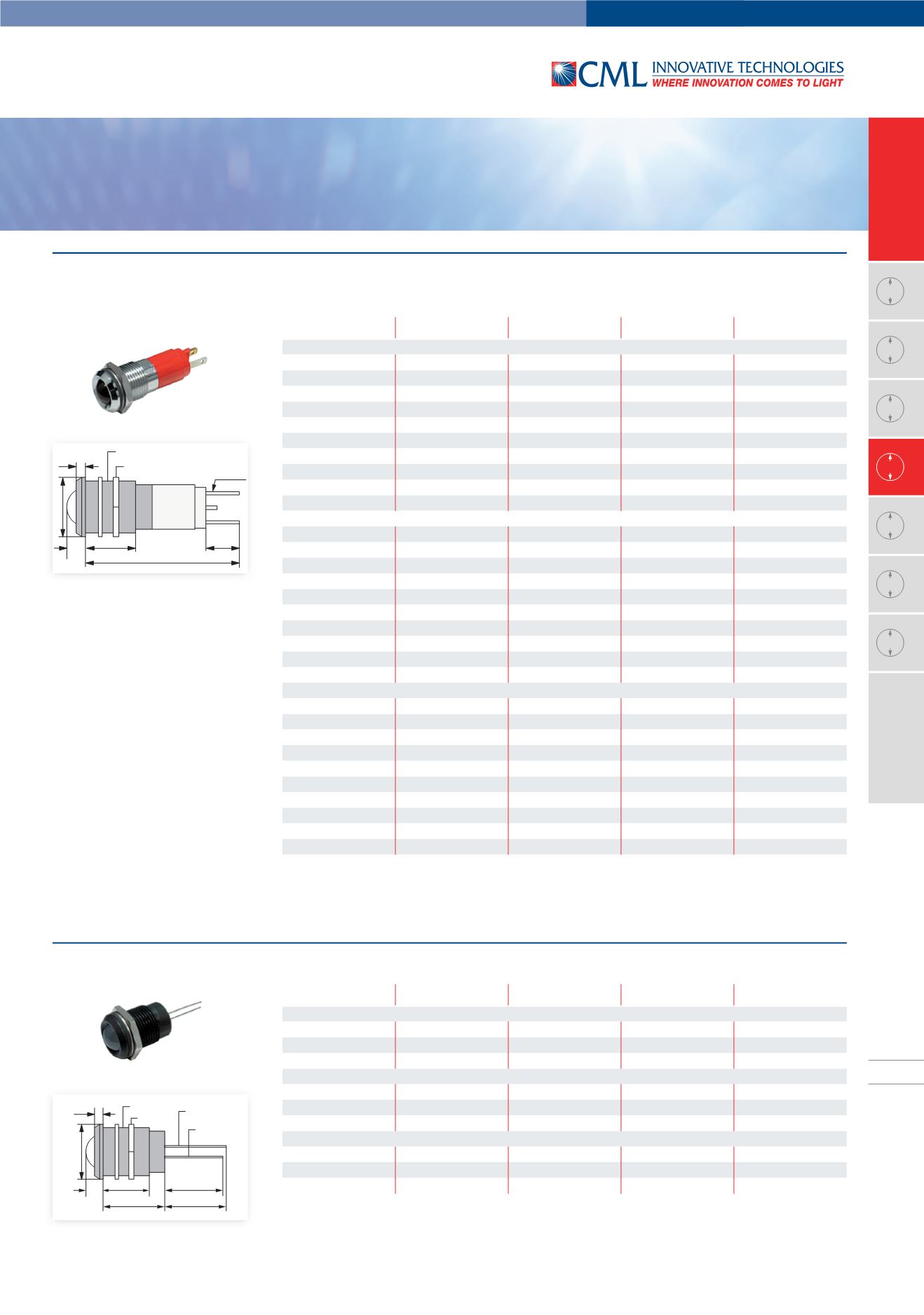

LED Signalleuchten

LED Panel Mount Indicators

Standardreflektor Sonnenlicht tauglich mit Vorwiderstand und Einweggleichrichter IP67 /

Standard bezel sunlight visibible with resistor and half-wave rectifier IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

192A0250

red

12V AC/DC

9mA AC / 17mA DC

700mcd

192A0255

green

12V AC/DC

9mA AC / 17mA DC

1250mcd

192A0252

yellow

12V AC/DC

9mA AC / 17mA DC

1000mcd

192A0257

blue

12V AC/DC

9mA AC / 17mA DC

500mcd

192A025W

white

12V AC/DC

4mA AC / 8mA DC

1400mcd

192A0350

red

24V AC/DC

9mA AC / 17mA DC

700mcd

192A0355

green

24V AC/DC

9mA AC / 17mA DC

1250mcd

192A0352

yellow

24V AC/DC

9mA AC / 17mA DC

1000mcd

192A0357

blue

24V AC/DC

9mA AC / 17mA DC

500mcd

192A035W

white

24V AC/DC

4mA AC / 8mA DC

1400mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

192A1250

red

12V AC/DC

9mA AC / 17mA DC

700mcd

192A1255

green

12V AC/DC

9mA AC / 17mA DC

1250mcd

192A1252

yellow

12V AC/DC

9mA AC / 17mA DC

1000mcd

192A1257

blue

12V AC/DC

9mA AC / 17mA DC

500mcd

192A125W

white

12V AC/DC

4mA AC / 8mA DC

1400mcd

192A1350

red

24V AC/DC

9mA AC / 17mA DC

700mcd

192A1355

green

24V AC/DC

9mA AC / 17mA DC

1250mcd

192A1352

yellow

24V AC/DC

9mA AC / 17mA DC

1000mcd

192A1357

blue

24V AC/DC

9mA AC / 17mA DC

500mcd

192A135W

white

24V AC/DC

4mA AC / 8mA DC

1400mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

192A2250

red

12V AC/DC

9mA AC / 17mA DC

700mcd

192A2255

green

12V AC/DC

9mA AC / 17mA DC

1250mcd

192A2252

yellow

12V AC/DC

9mA AC / 17mA DC

1000mcd

192A2257

blue

12V AC/DC

9mA AC / 17mA DC

500mcd

192A225W

white

12V AC/DC

4mA AC / 8mA DC

1400mcd

192A2350

red

24V AC/DC

9mA AC / 17mA DC

700mcd

192A2355

green

24V AC/DC

9mA AC / 17mA DC

1250mcd

192A2352

yellow

24V AC/DC

9mA AC / 17mA DC

1000mcd

192A2357

blue

24V AC/DC

9mA AC / 17mA DC

500mcd

192A235W

white

24V AC/DC

4mA AC / 8mA DC

1400mcd

Lichtstärkedaten der verwendeten LED bei DC-Betrieb /

Luminous intensity data of the LED on direct voltage

Maximale Frontplattenstärke 11mm /

Maximum panel thickness 11mm

Andere Spannungen auf Anfrage /

Other voltages on request

41

±

2

13,5

SW 17

5

ø 16

M 14 x 1

2,5

9

2,8 x 0,8

Standardreflektor blinkend IP40 /

Standard bezel flashing IP40

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19220000

red

3,5-13V DC

38-56mA DC

100mcd at 20mA

19220001

green

3,5-13V DC

38-56mA DC

70mcd at 20mA

19220002

yellow

3,5-13V DC

38-56mA DC

70mcd at 20mA

Schwarzverchromter Metallreflektor /

Black chrome bezel

19221000

red

3,5-13V DC

38-56mA DC

100mcd at 20mA

19221001

green

3,5-13V DC

38-56mA DC

70mcd at 20mA

19221002

yellow

3,5-13V DC

38-56mA DC

70mcd at 20mA

Mattverchromter Metallreflektor /

Matt chrome bezel

19222000

red

3,5-13V DC

38-56mA DC

100mcd at 20mA

19222001

green

3,5-13V DC

38-56mA DC

70mcd at 20mA

19222002

yellow

3,5-13V DC

38-56mA DC

70mcd at 20mA

Maximale Frontplattenstärke 11mm /

Maximum panel thickness 11mm

18

13,5

SW 17

5

ø 16

M 14 x 1

2,5

17

18

Anode

anode

Kathode

cathode
