EINBAUDURCHMESSER

MOUNTING HOLE

ZUBEHÖR

ACCESSORIES

58

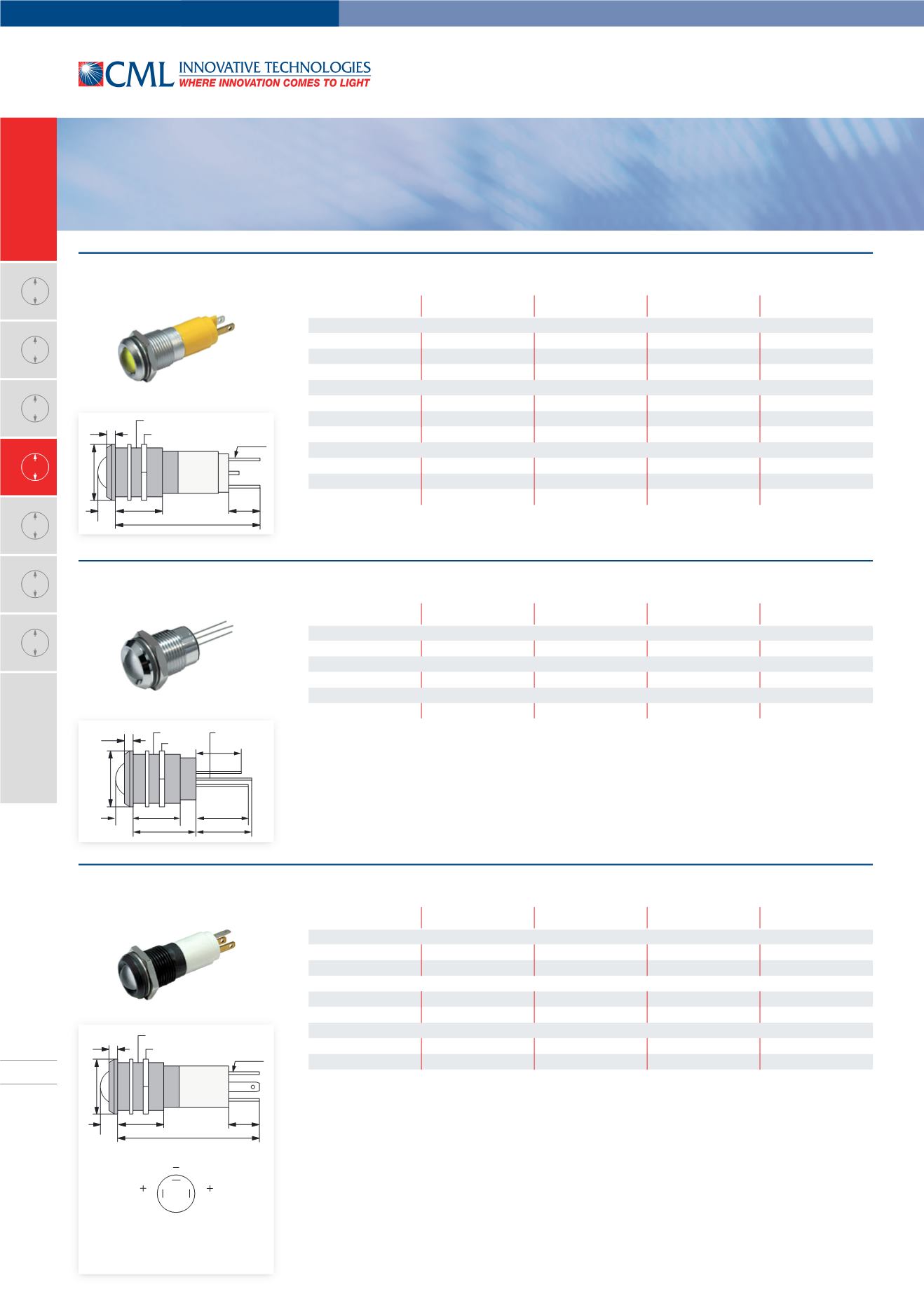

LED Signalleuchten

LED Panel Mount Indicators

Standardreflektor blinkend IP67 /

Standard bezel flashing IP67

Standardreflektor dreifarbig ohne Vorwiderstand IP40 /

Standard bezel tri-colour without resistor IP40

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19220350

red

24V DC

38-56mA DC

100mcd at 20mA

19220351

green

24V DC

38-56mA DC

70mcd at 20mA

19220352

yellow

24V DC

38-56mA DC

70mcd at 20mA

Schwarzverchromter Metallreflektor /

Black chrome bezel

19221350

red

24V DC

38-56mA DC

100mcd at 20mA

19221351

green

24V DC

38-56mA DC

70mcd at 20mA

19221352

yellow

24V DC

38-56mA DC

70mcd at 20mA

Mattverchromter Metallreflektor /

Matt chrome bezel

19222350

red

24V DC

38-56mA DC

100mcd at 20mA

19222351

green

24V DC

38-56mA DC

70mcd at 20mA

19222352

yellow

24V DC

38-56mA DC

70mcd at 20mA

Maximale Frontplattenstärke 11mm /

Maximum panel thickness 11mm

Part Number

Colour

Typ. Forward Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19240004

red/green/yellow

2,1/2,2/2,2V DC

90/60/150mcd at 20mA

Schwarzverchromter Metallreflektor /

Black chrome bezel

19241004

red/green/yellow

2,1/2,2/2,2V DC

90/60/150mcd at 20mA

Mattverchromter Metallreflektor /

Matt chrome bezel

19242004

red/green/yellow

2,1/2,2/2,2V DC

90/60/150mcd at 20mA

Maximale Frontplattenstärke 11mm /

Maximum panel thickness 11mm

41

±

2

13,5

SW 17

5

ø 16

M 14 x 1

2,5

9

2,8 x 0,8

18

13,5

SW 17

5

ø 16

M 14 x 1

2,5

16

15

Kathode

cathode

13

Standardreflektor dreifarbig mit Vorwiderstand IP67 /

Standard bezel tri-colour with resistor IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19240254

red/green/yellow

12V DC

20/20/40mA DC

90/60/150mcd

19240354

red/green/yellow

24V DC

20/20/40mA DC

90/60/150mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

19241254

red/green/yellow

12V DC

20/20/40mA DC

90/60/150mcd

19241354

red/green/yellow

24V DC

20/20/40mA DC

90/60/150mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

19242254

red/green/yellow

12V DC

20/20/40mA DC

90/60/150mcd

19242354

red/green/yellow

24V DC

20/20/40mA DC

90/60/150mcd

Maximale Frontplattenstärke 11mm /

Maximum panel thickness 11mm

Andere Spannungen auf Anfrage /

Other voltages on request

Schaltungsmöglichkeiten:

Rot,grün oder gelb – Beide Dioden ergeben gelb als Farbmischung

Operationmodes:

Red,greenoryellow–Bothdiodesproduceyellowasamixedcolour

grün /

green

rot /

red

gemeinsame Kathode

common cathode

9

41

±

2

13,5

SW 17

5

ø 16

M 14 x 1

2,5

2,8 x 0,8
