62

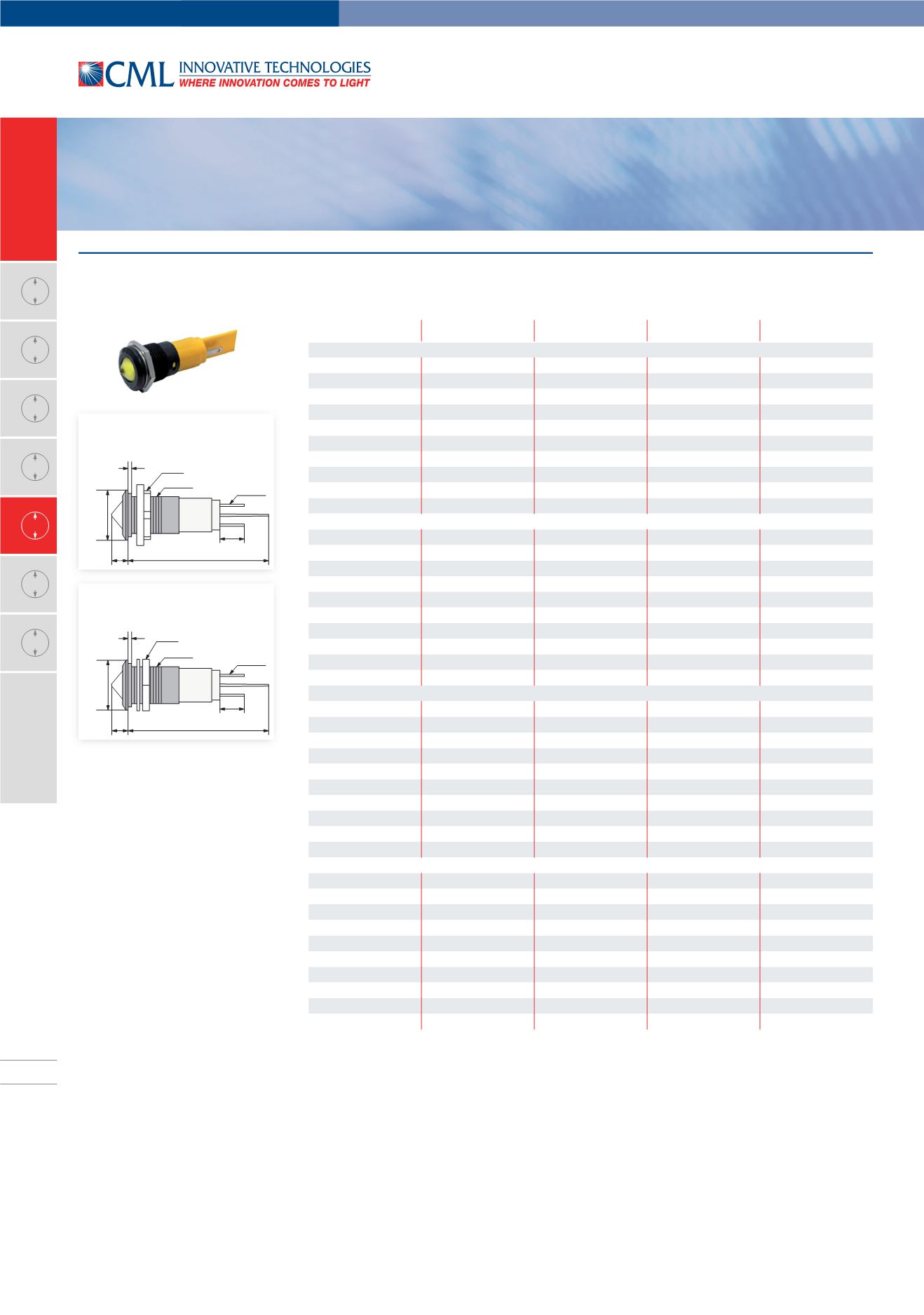

LED Signalleuchten
LED Panel Mount Indicators
Standardreflektor konische Linse mit Vorwiderstand und Einweggleichrichter IP67 /
Standard bezel conical lens with resistor and half-wave rectifier IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Schwarzer Kunststoffreflektor /
Black plastic bezel
19391250
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19391255
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19391252
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19391257
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1939125W
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19391350
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19391355
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19391352
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19391357
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1939135W
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19390250M
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19390255M
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19390252M
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19390257M
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1939025WM
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19390350M
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19390355M
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19390352M
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19390357M
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1939035WM
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19391250M
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19391255M
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19391252M
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19391257M
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1939125WM
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19391350M
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19391355M
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19391352M
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19391357M
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1939135WM
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19392250M
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19392255M
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19392252M
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19392257M
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1939225WM
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19392350M
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19392355M
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19392352M
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19392357M
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1939235WM
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Lichtstärkedaten der verwendeten LED bei DC-Betrieb /
Luminous intensity data of the LED on direct voltage
Maximale Frontplattenstärke 11mm /
Maximum panel thickness 11mm
Andere Spannungen auf Anfrage /
Other voltages on request
Kunststoffausführung
/versionwithblackplasticbezel
52
±
2
9
2,8 x 0,8
M 16 x 1
SW 18
6
ø 18,3
1
Flachdichtung /
gasket
Metallausführung /
versionwithmetalbezel
52
±
2
9
2,8 x 0,8
M 16 x 1
6
ø 18,3
1
SW 19
Flachdichtung /
gasket
