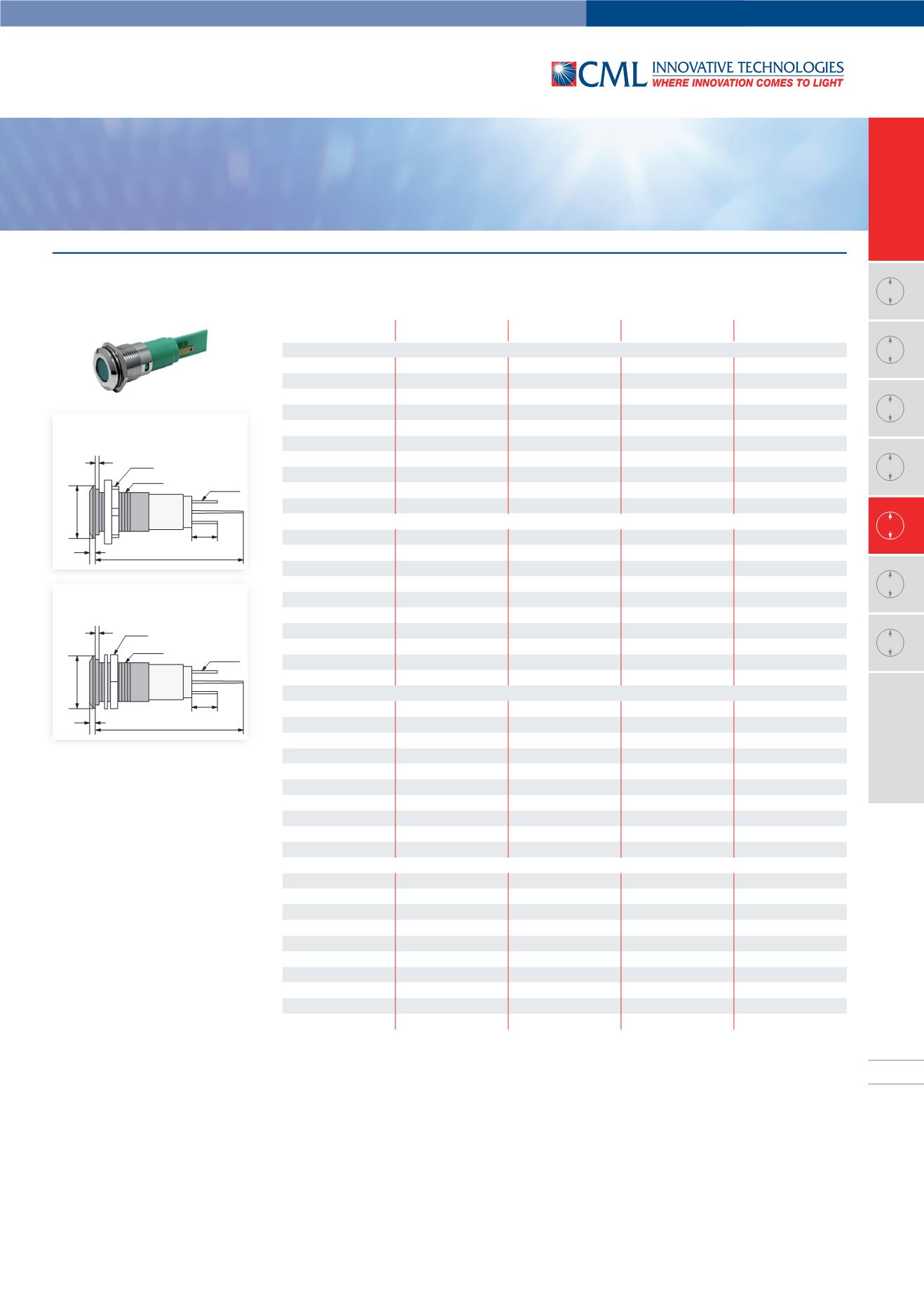

61 / 77
6mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
61
LED Signalleuchten
LED Panel Mount Indicators
Standardreflektor flache Linse mit Vorwiderstand und Einweggleichrichter IP67 /
Standard bezel flat lens with resistor and half-wave rectifier IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Schwarzer Kunststoffreflektor /
Black plastic bezel
19381250
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19381255
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19381252
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19381257
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1938125W
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19381350
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19381355
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19381352
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19381357
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1938135W
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19380250M
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19380255M
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19380252M
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19380257M
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1938025WM
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19380350M
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19380355M
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19380352M
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19380357M
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1938035WM
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19381250M
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19381255M
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19381252M
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19381257M
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1938125WM
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19381350M
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19381355M
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19381352M
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19381357M
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1938135WM
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19382250M
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19382255M
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19382252M
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19382257M
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1938225WM
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19382350M
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19382355M
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19382352M
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19382357M
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1938235WM
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Lichtstärkedaten der verwendeten LED bei DC-Betrieb /
Luminous intensity data of the LED on direct voltage
Maximale Frontplattenstärke 11mm /
Maximum panel thickness 11mm
Andere Spannungen auf Anfrage /
Other voltages on request
Kunststoffausführung
/versionwithblackplasticbezel
52
±
2
9
2
2,8 x 0,8
M 16 x 1
SW 18
ø 18,3
1
Flachdichtung /
gasket
Metallausführung /
versionwithmetalbezel
52
±
2
9
2
2,8 x 0,8
M 16 x 1
ø 18,3
1
SW 19
Flachdichtung /
gasket
