EINBAUDURCHMESSER

MOUNTING HOLE

ZUBEHÖR

ACCESSORIES

63

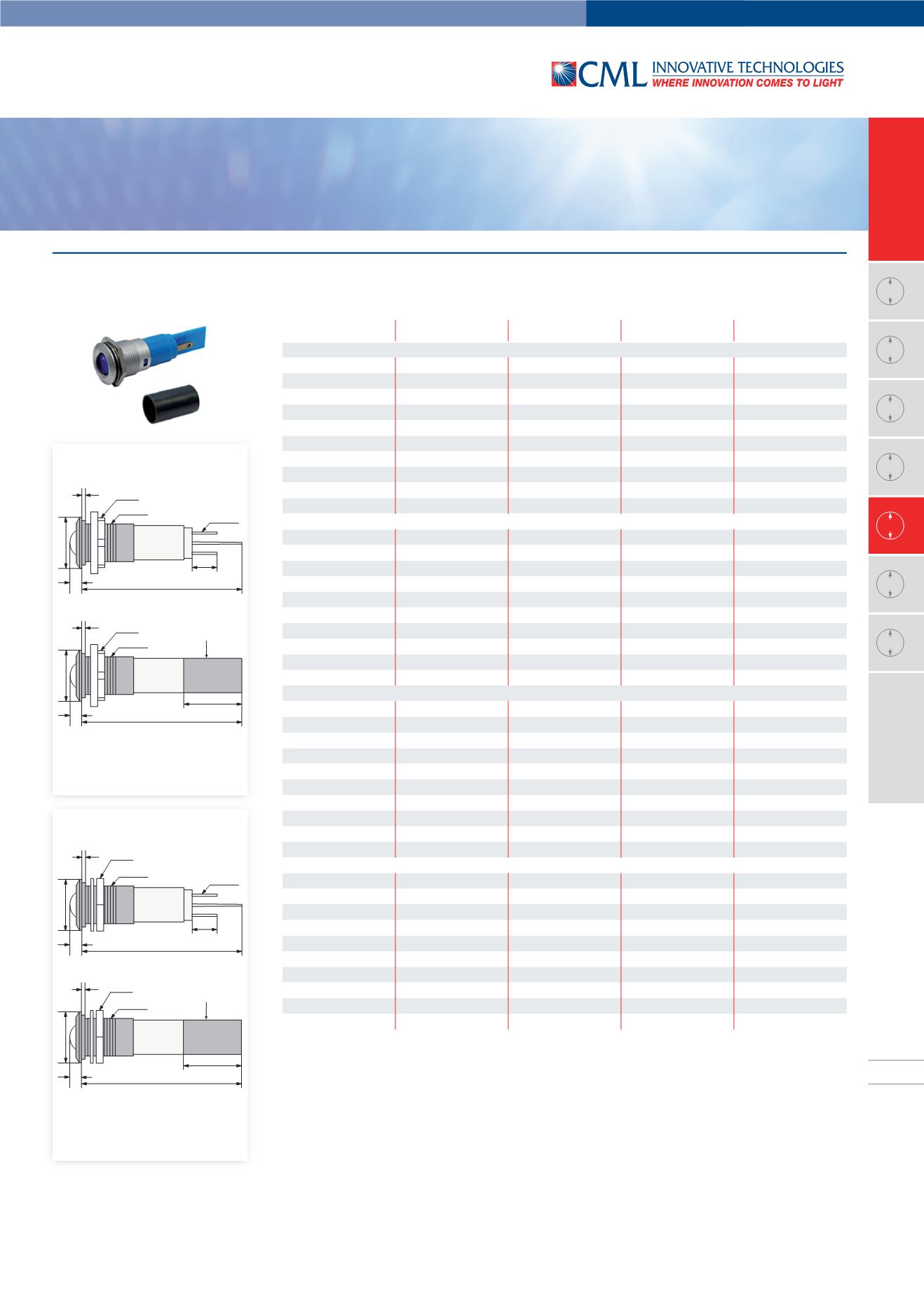

LED Signalleuchten

LED Panel Mount Indicators

Standardreflektor runde Linse 130/230V AC mit Berührungsschutzhülse IP67 /

Standard bezel round lens 130/230V AC with protection tube IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Schwarzer Kunststoffreflektor /

Black plastic bezel

19401130

red

130V AC

6mA AC

600mcd

19401135

green

130V AC

6mA AC

510mcd

19401132

yellow

130V AC

6mA AC

400mcd

19401137

blue

130V AC

6mA AC

150mcd

1940113W

white

130V AC

3mA AC

450mcd

19401230

red

230V AC

3mA AC

300mcd

19401235

green

230V AC

3mA AC

255mcd

19401232

yellow

230V AC

3mA AC

200mcd

19401237

blue

230V AC

3mA AC

75mcd

1940123W

white

230V AC

1,5mA AC

225mcd

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

19400130M

red

130V AC

6mA AC

600mcd

19400135M

green

130V AC

6mA AC

510mcd

19400132M

yellow

130V AC

6mA AC

400mcd

19400137M

blue

130V AC

6mA AC

150mcd

1940013WM

white

130V AC

3mA AC

450mcd

19400230M

red

230V AC

3mA AC

300mcd

19400235M

green

230V AC

3mA AC

255mcd

19400232M

yellow

230V AC

3mA AC

200mcd

19400237M

blue

230V AC

3mA AC

75mcd

1940023WM

white

230V AC

1,5mA AC

225mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

19401130M

red

130V AC

6mA AC

600mcd

19401135M

green

130V AC

6mA AC

510mcd

19401132M

yellow

130V AC

6mA AC

400mcd

19401137M

blue

130V AC

6mA AC

150mcd

1940113WM

white

130V AC

3mA AC

450mcd

19401230M

red

230V AC

3mA AC

300mcd

19401235M

green

230V AC

3mA AC

255mcd

19401232M

yellow

230V AC

3mA AC

200mcd

19401237M

blue

230V AC

3mA AC

75mcd

1940123WM

white

230V AC

1,5mA AC

225mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

19402130M

red

130V AC

6mA AC

600mcd

19402135M

green

130V AC

6mA AC

510mcd

19402132M

yellow

130V AC

6mA AC

400mcd

19402137M

blue

130V AC

6mA AC

150mcd

1940213WM

white

130V AC

3mA AC

450mcd

19402230M

red

230V AC

3mA AC

300mcd

19402235M

green

230V AC

3mA AC

255mcd

19402232M

yellow

230V AC

3mA AC

200mcd

19402237M

blue

230V AC

3mA AC

75mcd

1940223WM

white

230V AC

1,5mA AC

225mcd

Maximale Frontplattenstärke 11mm /

Maximum panel thickness 11mm

Andere Spannungen auf Anfrage /

Other voltages on request

58

±

2

M 16 x 1

SW 18

ø 18,3

1

21

4,5

58

±

2

9

2,8 x 0,8

M 16 x 1

SW 18

1

4,5

ø 18,3

Berührungsschutzhülse

protection tube

Flachdichtung /

gasket

Flachdichtung /

gasket

Kunststoffausführung

/versionwithblackplasticbezel

Die 130VAC und 230VACVersionen werdengrundsätzlich mit

Berührungsschutzhülse geliefert.

Ingeneralwe supply the130VACand230VACversionswitha

protection tube.

58

±

2

M 16 x 1

ø 18,3

1

21

4,5

SW 19

58

±

2

9

2,8 x 0,8

M 16 x 1

1

4,5

ø 18,3

SW 19

Berührungsschutzhülse

protection tube

Flachdichtung /

gasket

Flachdichtung /

gasket

Metallausführung

/versionwithmetalbezel

Die 130VAC und 230VACVersionen werdengrundsätzlich mit

Berührungsschutzhülse geliefert.

Ingeneralwe supply the130VACand230VACversionswitha

protection tube.
