70 / 77
6mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
70

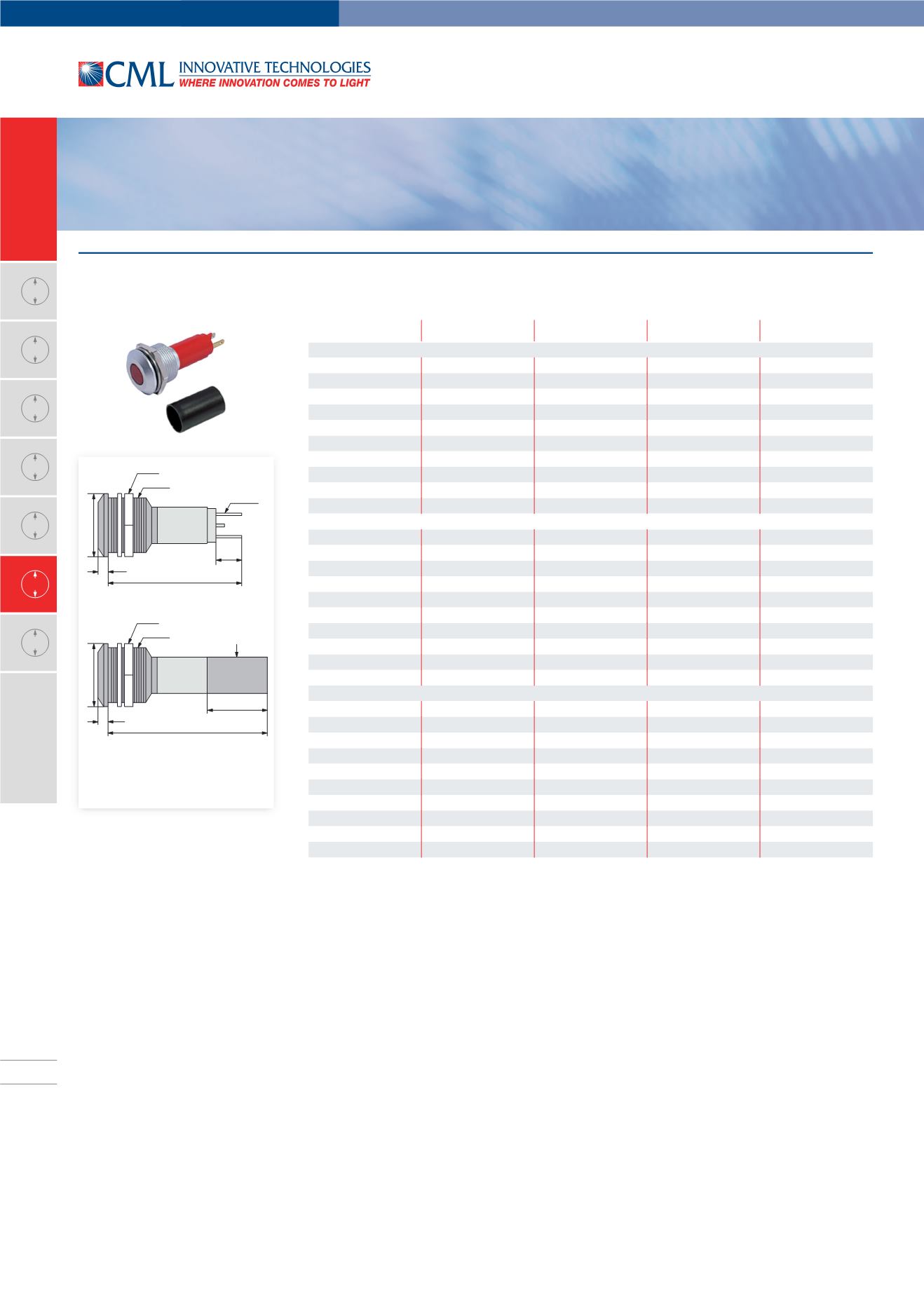

LED Signalleuchten
LED Panel Mount Indicators
Standardreflektor flache Linse 130/230V AC mit Berührungsschutzhülse IP67 /
Standard bezel flat lens 130/230V AC with protection tube IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19740130
red
130V AC
6mA AC
600mcd
19740135
green
130V AC
6mA AC
510mcd
19740132
yellow
130V AC
6mA AC
400mcd
19740137
blue
130V AC
6mA AC
150mcd
1974013W
white
130V AC
3mA AC
450mcd
19740230
red
230V AC
3mA AC
300mcd
19740235
green
230V AC
3mA AC
255mcd
19740232
yellow
230V AC
3mA AC
200mcd
19740237
blue
230V AC
3mA AC
75mcd
1974023W
white
230V AC
1,5mA AC
225mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19741130
red
130V AC
6mA AC
600mcd
19741135
green
130V AC
6mA AC
510mcd
19741132
yellow
130V AC
6mA AC
400mcd
19741137
blue
130V AC
6mA AC
150mcd
1974113W
white
130V AC
3mA AC
450mcd
19741230
red
230V AC
3mA AC
300mcd
19741235
green
230V AC
3mA AC
255mcd
19741232
yellow
230V AC
3mA AC
200mcd
19741237
blue
230V AC
3mA AC
75mcd
1974123W
white
230V AC
1,5mA AC
225mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19742130
red
130V AC
6mA AC
600mcd
19742135
green
130V AC
6mA AC
510mcd
19742132
yellow
130V AC
6mA AC
400mcd
19742137
blue
130V AC
6mA AC
150mcd
1974213W
white
130V AC
3mA AC
450mcd
19742230
red
230V AC
3mA AC
300mcd
19742235
green
230V AC
3mA AC
255mcd
19742232
yellow
230V AC
3mA AC
200mcd
19742237
blue
230V AC
3mA AC
75mcd
1974223W
white
230V AC
1,5mA AC
225mcd
Maximale Frontplattenstärke 11mm /
Maximum panel thickness 11mm
Andere Spannungen auf Anfrage /
Other voltages on request
Die 130VAC und 230VACVersionen werden grundsätzlich mit
Berührungsschutzhülse geliefert.
Ingeneralwe supply the130VACand230VACversionswitha
protection tube.
21
56
±
2
SW 22
3,5
ø 22
M 19 x 1
Berührungsschutzhülse
protection tube
9
47
±
2
SW 22
3,5
ø 22
M 19 x 1
2,8 x 0,8
