EINBAUDURCHMESSER

MOUNTING HOLE

ZUBEHÖR

ACCESSORIES

75

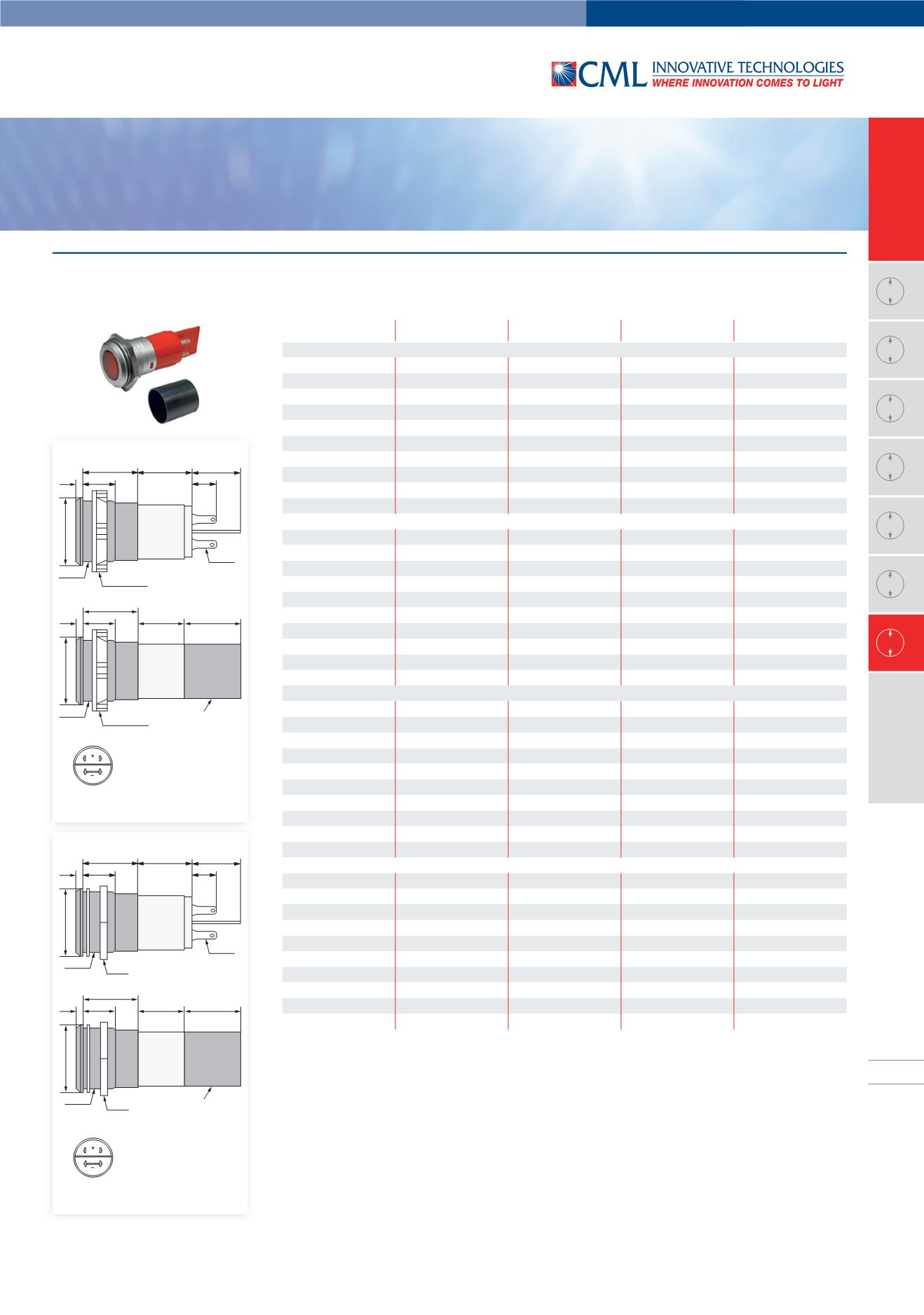

LED Signalleuchten

LED Panel Mount Indicators

Standardreflektor flache Linse 130/230V AC mit Berührungsschutzhülse IP67 /

Standard bezel flat lens 130/230V AC with protection tube IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Schwarzer Kunststoffreflektor /

Black plastic bezel

195F1130

red

130V AC

6mA AC

60mcd

195F1131

green

130V AC

6mA AC

150mcd

195F1132

yellow

130V AC

6mA AC

130mcd

195F1137

blue

130V AC

6mA AC

100mcd

195F113W

white

130V AC

3mA AC

450mcd

195F1230

red

230V AC

4mA AC

40mcd

195F1231

green

230V AC

4mA AC

100mcd

195F1232

yellow

230V AC

4mA AC

85mcd

195F1237

blue

230V AC

4mA AC

70mcd

195F123W

white

230V AC

2mA AC

300mcd

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

195F0130M

red

130V AC

6mA AC

60mcd

195F0131M

green

130V AC

6mA AC

150mcd

195F0132M

yellow

130V AC

6mA AC

130mcd

195F0137M

blue

130V AC

6mA AC

100mcd

195F013WM

white

130V AC

3mA AC

450mcd

195F0230M

red

230V AC

4mA AC

40mcd

195F0231M

green

230V AC

4mA AC

100mcd

195F0232M

yellow

230V AC

4mA AC

85mcd

195F0237M

blue

230V AC

4mA AC

70mcd

195F023WM

white

230V AC

2mA AC

300mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

195F1130M

red

130V AC

6mA AC

60mcd

195F1131M

green

130V AC

6mA AC

150mcd

195F1132M

yellow

130V AC

6mA AC

130mcd

195F1137M

blue

130V AC

6mA AC

100mcd

195F113WM

white

130V AC

3mA AC

450mcd

195F1230M

red

230V AC

4mA AC

40mcd

195F1231M

green

230V AC

4mA AC

100mcd

195F1232M

yellow

230V AC

4mA AC

85mcd

195F1237M

blue

230V AC

4mA AC

70mcd

195F123WM

white

230V AC

2mA AC

300mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

195F2130M

red

130V AC

6mA AC

60mcd

195F2131M

green

130V AC

6mA AC

150mcd

195F2132M

yellow

130V AC

6mA AC

130mcd

195F2137M

blue

130V AC

6mA AC

100mcd

195F213WM

white

130V AC

3mA AC

450mcd

195F2230M

red

230V AC

4mA AC

40mcd

195F2231M

green

230V AC

4mA AC

100mcd

195F2232M

yellow

230V AC

4mA AC

85mcd

195F2237M

blue

230V AC

4mA AC

70mcd

195F223WM

white

230V AC

2mA AC

300mcd

Maximale Frontplattenstärke 8,5mm /

Maximum panel thickness 8.5mm

Andere Spannungen auf Anfrage /

Other voltages on request

Kunststoffausführung

/versionwithblackplasticbezel

(Kathode /

cathode

)

1

4

3

2

(Anode /

anode

)

Die 130VAC und 230VACVersionen

werdengrundsätzlich mit

Berührungsschutzhülse geliefert.

Ingeneralwe supply the130VACand

230VACversionswitha

protection tube.

25

12

20

21

2,5

M 22 x 1,5

17

Mutter /

nut

ø 30

20

20

18

25

2,5

M 22 x 1,5

Mutter /

nut

ø 30

12

9

2,8 x 0,8

Berührungsschutzhülse

protection tube

Metallausführung

/versionwithmetalbezel

(Kathode /

cathode

)

1

4

3

2

(Anode /

anode

)

Die 130VAC und 230VACVersionen

werdengrundsätzlich mit

Berührungsschutzhülse geliefert.

Ingeneralwe supply the130VACand

230VACversionswitha

protection tube.

20

20

18

25

2,5

12

9

2,8 x 0,8

M 22 x 1,5

SW27

25

12

20

21

2,5

17

M 22 x 1,5

SW27

Berührungsschutzhülse

protection tube
