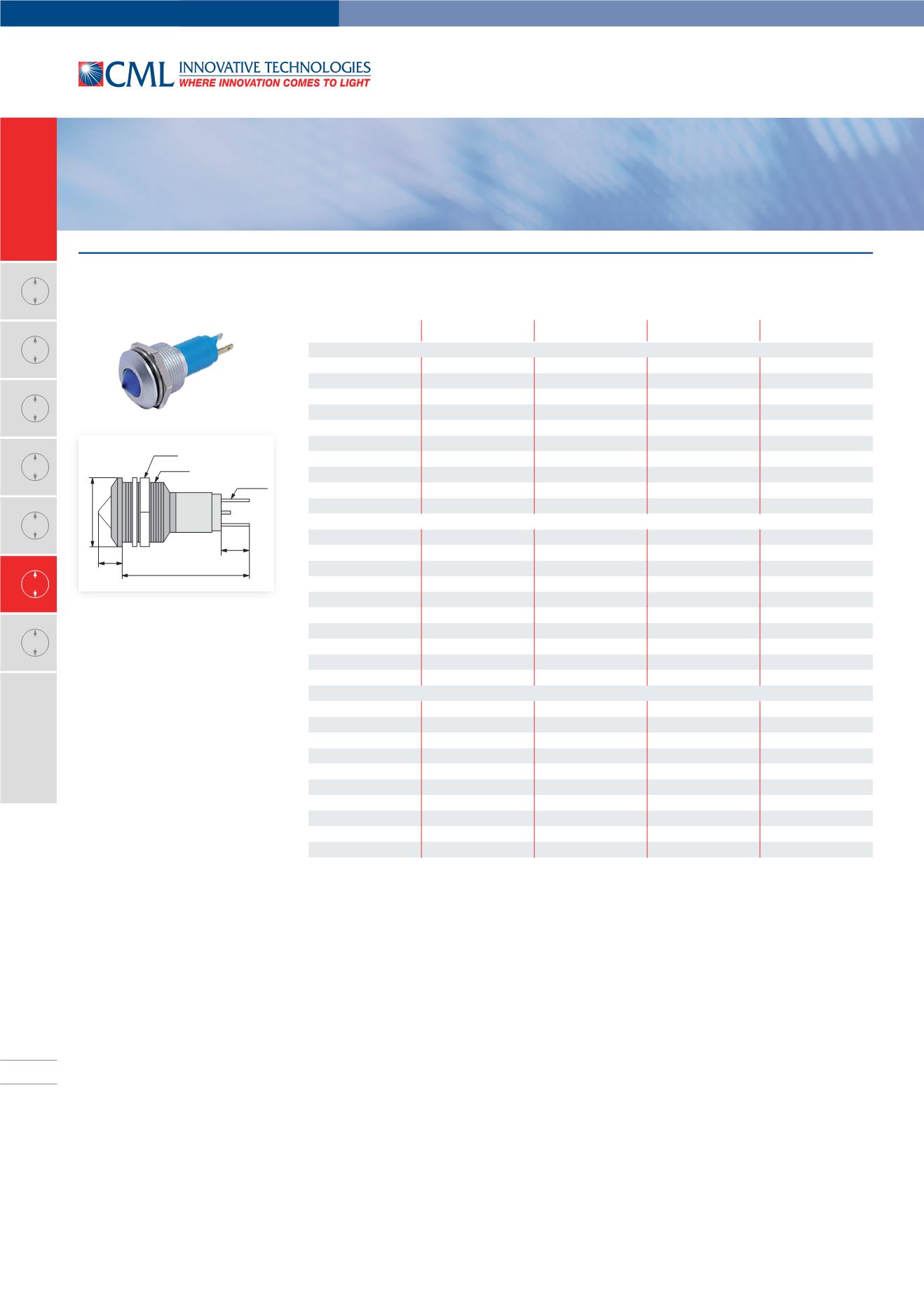

LED Signalleuchten
LED Panel Mount Indicators
Standardreflektor konische Linse mit Vorwiderstand und Einweggleichrichter IP67 /
Standard bezel conical lens with resistor and half-wave rectifier IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19720250
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19720255
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19720252
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19720257
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1972025W
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19720350
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19720355
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19720352
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19720357
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1972035W
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19721250
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19721255
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19721252
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19721257
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1972125W
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19721350
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19721355
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19721352
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19721357
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1972135W
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19722250
red
12V AC/DC
8mA AC / 16mA DC
1500mcd
19722255
green
12V AC/DC
7mA AC / 14mA DC
1200mcd
19722252
yellow
12V AC/DC
8mA AC / 16mA DC
1000mcd
19722257
blue
12V AC/DC
7mA AC / 14mA DC
350mcd
1972225W
white
12V AC/DC
2,5mA AC / 5mA DC
750mcd
19722350
red
24V AC/DC
8mA AC / 16mA DC
1500mcd
19722355
green
24V AC/DC
7mA AC / 14mA DC
1200mcd
19722352
yellow
24V AC/DC
8mA AC / 16mA DC
1000mcd
19722357
blue
24V AC/DC
7mA AC / 14mA DC
350mcd
1972235W
white
24V AC/DC
2,5mA AC / 5mA DC
750mcd
Lichtstärkedaten der verwendeten LED bei DC-Betrieb /
Luminous intensity data of the LED on direct voltage
Maximale Frontplattenstärke 11mm /
Maximum panel thickness 11mm
Andere Spannungen auf Anfrage /
Other voltages on request
9
41
±
2
SW 22
7,5
ø 22
M 19 x 1
2,8 x 0,8
