71 / 77
16mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
71

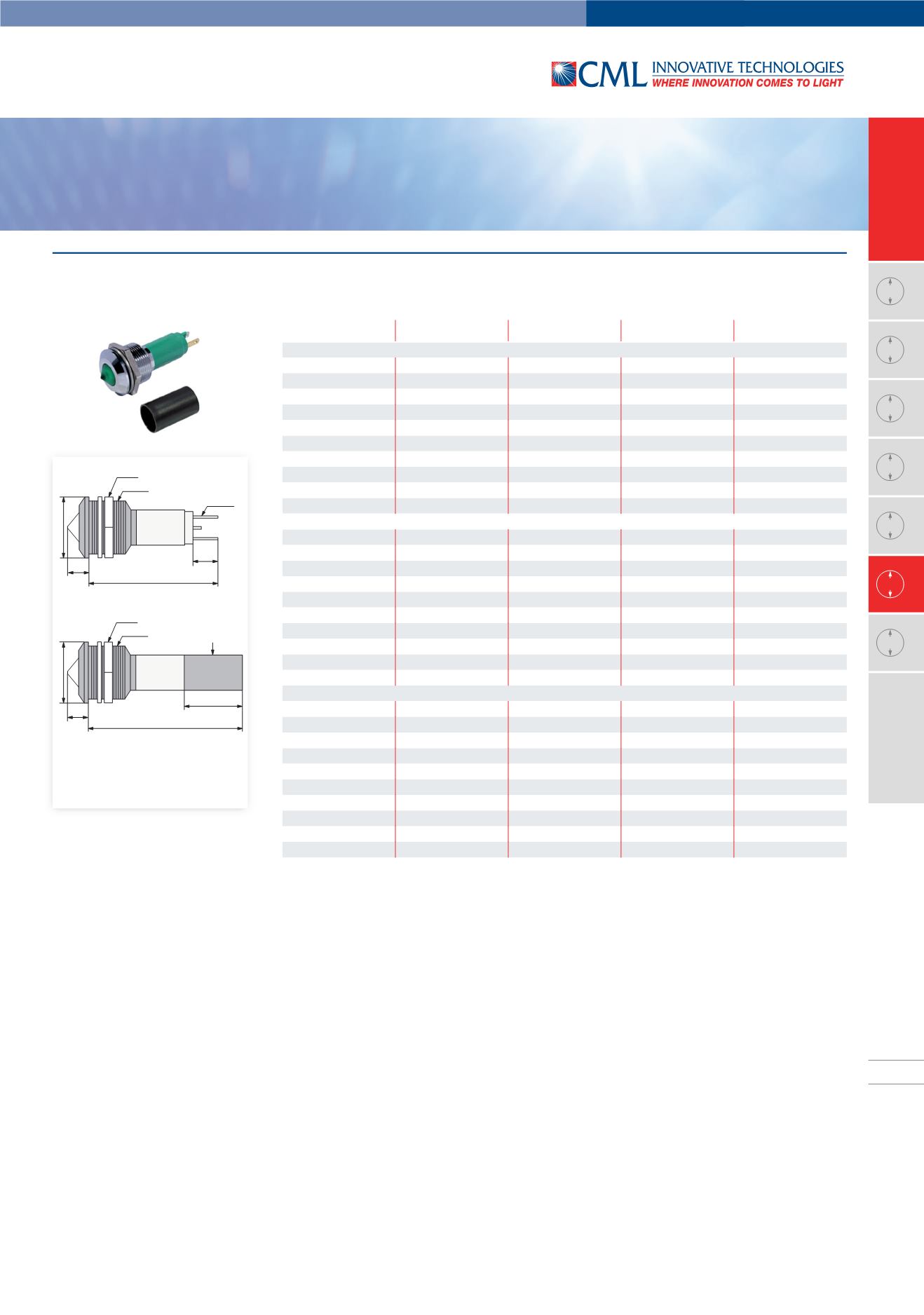

LED Signalleuchten
LED Panel Mount Indicators
Standardreflektor konische Linse 130/230V AC mit Berührungsschutzhülse IP67 /
Standard bezel conical lens 130/230V AC with protection tube IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19750130
red
130V AC
6mA AC
600mcd
19750135
green
130V AC
6mA AC
510mcd
19750132
yellow
130V AC
6mA AC
400mcd
19750137
blue
130V AC
6mA AC
150mcd
1975013W
white
130V AC
3mA AC
450mcd
19750230
red
230V AC
3mA AC
300mcd
19750235
green
230V AC
3mA AC
255mcd
19750232
yellow
230V AC
3mA AC
200mcd
19750237
blue
230V AC
3mA AC
75mcd
1975023W
white
230V AC
1,5mA AC
225mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19751130
red
130V AC
6mA AC
600mcd
19751135
green
130V AC
6mA AC
510mcd
19751132
yellow
130V AC
6mA AC
400mcd
19751137
blue
130V AC
6mA AC
150mcd
1975113W
white
130V AC
3mA AC
450mcd
19751230
red
230V AC
3mA AC
300mcd
19751235
green
230V AC
3mA AC
255mcd
19751232
yellow
230V AC
3mA AC
200mcd
19751237
blue
230V AC
3mA AC
75mcd
1975123W
white
230V AC
1,5mA AC
225mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19752130
red
130V AC
6mA AC
600mcd
19752135
green
130V AC
6mA AC
510mcd
19752132
yellow
130V AC
6mA AC
400mcd
19752137
blue
130V AC
6mA AC
150mcd
1975213W
white
130V AC
3mA AC
450mcd
19752230
red
230V AC
3mA AC
300mcd
19752235
green
230V AC
3mA AC
255mcd
19752232
yellow
230V AC
3mA AC
200mcd
19752237
blue
230V AC
3mA AC
75mcd
1975223W
white
230V AC
1,5mA AC
225mcd
Maximale Frontplattenstärke 11mm /
Maximum panel thickness 11mm
Andere Spannungen auf Anfrage /
Other voltages on request
Die 130VAC und 230VACVersionen werdengrundsätzlich mit
Berührungsschutzhülse geliefert.
Ingeneralwe supply the130VACand230VACversionswitha
protection tube.
21
56
±
2
SW 22
7,5
ø 22
M 19 x 1
47
±
2
SW 22
7,5
ø 22
M 19 x 1
9
2,8 x 0,8
Berührungsschutzhülse
protection tube
