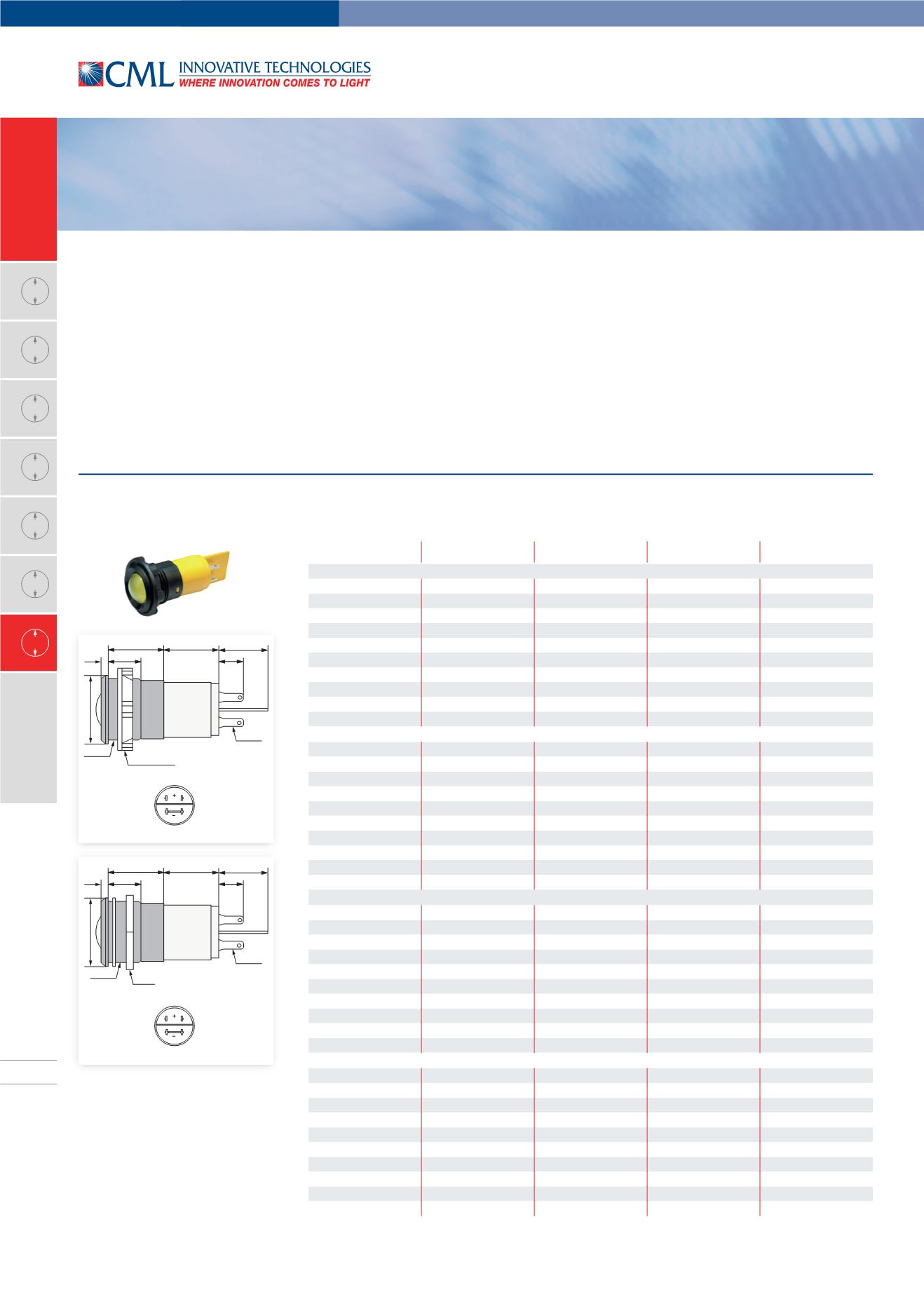

LED Signalleuchten

LED Panel Mount Indicators

Standardreflektor runde Linse mit Vorwiderstand und Brückengleichrichter IP67 /

Standard bezel round lens with resistor and bridge rectifier IP67

Part Number

Colour

Voltage

Typ. Current

Typ. Lumi. Intensity

Schwarzer Kunststoffreflektor /

Black plastic bezel

195A1250UC

red

12V AC/DC

16mA AC/DC

160mcd

195A1251UC

green

12V AC/DC

16mA AC/DC

400mcd

195A1252UC

yellow

12V AC/DC

16mA AC/DC

350mcd

195A1257UC

blue

12V AC/DC

16mA AC/DC

280mcd

195A125WUC

white

12V AC/DC

7mA AC/DC

1050mcd

195A1350UC

red

24V AC/DC

16mA AC/DC

160mcd

195A1351UC

green

24V AC/DC

16mA AC/DC

400mcd

195A1352UC

yellow

24V AC/DC

16mA AC/DC

350mcd

195A1357UC

blue

24V AC/DC

16mA AC/DC

280mcd

195A135WUC

white

24V AC/DC

8mA AC/DC

1200mcd

Hochglanzverchromter Metallreflektor /

Satin chrome bezel

195A0250MUC

red

12V AC/DC

16mA AC/DC

160mcd

195A0251MUC

green

12V AC/DC

16mA AC/DC

400mcd

195A0252MUC

yellow

12V AC/DC

16mA AC/DC

350mcd

195A0257MUC

blue

12V AC/DC

16mA AC/DC

280mcd

195A025WMUC

white

12V AC/DC

7mA AC/DC

1050mcd

195A0350MUC

red

24V AC/DC

16mA AC/DC

160mcd

195A0351MUC

green

24V AC/DC

16mA AC/DC

400mcd

195A0352MUC

yellow

24V AC/DC

16mA AC/DC

350mcd

195A0357MUC

blue

24V AC/DC

16mA AC/DC

280mcd

195A035WMUC

white

24V AC/DC

8mA AC/DC

1200mcd

Schwarzverchromter Metallreflektor /

Black chrome bezel

195A1250MUC

red

12V AC/DC

16mA AC/DC

160mcd

195A1251MUC

green

12V AC/DC

16mA AC/DC

400mcd

195A1252MUC

yellow

12V AC/DC

16mA AC/DC

350mcd

195A1257MUC

blue

12V AC/DC

16mA AC/DC

280mcd

195A125WMUC

white

12V AC/DC

7mA AC/DC

1050mcd

195A1350MUC

red

24V AC/DC

16mA AC/DC

160mcd

195A1351MUC

green

24V AC/DC

16mA AC/DC

400mcd

195A1352MUC

yellow

24V AC/DC

16mA AC/DC

350mcd

195A1357MUC

blue

24V AC/DC

16mA AC/DC

280mcd

195A135WMUC

white

24V AC/DC

8mA AC/DC

1200mcd

Mattverchromter Metallreflektor /

Matt chrome bezel

195A2250MUC

red

12V AC/DC

16mA AC/DC

160mcd

195A2251MUC

green

12V AC/DC

16mA AC/DC

400mcd

195A2252MUC

yellow

12V AC/DC

16mA AC/DC

350mcd

195A2257MUC

blue

12V AC/DC

16mA AC/DC

280mcd

195A225WMUC

white

12V AC/DC

7mA AC/DC

1050mcd

195A2350MUC

red

24V AC/DC

16mA AC/DC

160mcd

195A2351MUC

green

24V AC/DC

16mA AC/DC

400mcd

195A2352MUC

yellow

24V AC/DC

16mA AC/DC

350mcd

195A2357MUC

blue

24V AC/DC

16mA AC/DC

280mcd

195A235WMUC

white

24V AC/DC

8mA AC/DC

1200mcd

Maximale Frontplattenstärke 8,5mm /

Maximum panel thickness 8.5mm

Andere Spannungen auf Anfrage /

Other voltages on request

20

20

18

25

2,5

M22 x 1,5

Mutter /

nut

ø 30

12

9

2,8 x 0,8

(Kathode /

cathode

)

1

4

3

2

(Anode /

anode

)

20

20

18

25

2,5

12

9

2,8 x 0,8

M22 x 1,5

SW27

(Kathode /

cathode

)

1

4

3

2

(Anode /

anode

)

LED Signalleuchten für den Einbaudurchmesser von 22mm (+0,5mm) sind mit verschiedenfar-

bigen, diffusen 16mm Linsen bestückt.

Zur Auswahl stehen zwei Linsenformen:

runde Linse

flache Linse

Sie sind mit hochglanzverchromten, schwarzverchromten oder mattverchromten Messing-

reflektoren sowie schwarzen Kunststoffreflektoren lieferbar. Der Anschluss erfolgt in der

Regel über Flachstecker 2,8 x 0,8mm. Die entsprechenden Flachsteckhülsen finden Sie auf

der Zubehör-Seite. Die Montage der LED Signalleuchten erfolgt mittels der mitgelieferten

Sprengringe und Muttern.

Messingflachstecker = Anode (+)

verzinnter Flachstecker = Kathode (-)

LED panel mount indicators for a 22mm (+0.5mm) mounting hole are manufactured with

coloured diffused 16mm lenses.

These indicators can be delivered with two different lens shapes:

round lens

flat lens

These lenses are fitted in high quality satin chrome, black chrome or matt chrome metal

bezels or in black plastic bezels, supplied with fixing nut and washer. Connection is usually

by faston tab terminals 2.8 x 0.8mm. Suitable crimp connectors can be found on the page

for accessories.

Brass terminals = anode (+)

Tinned terminals = cathode (-)
