69 / 77
16mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
69

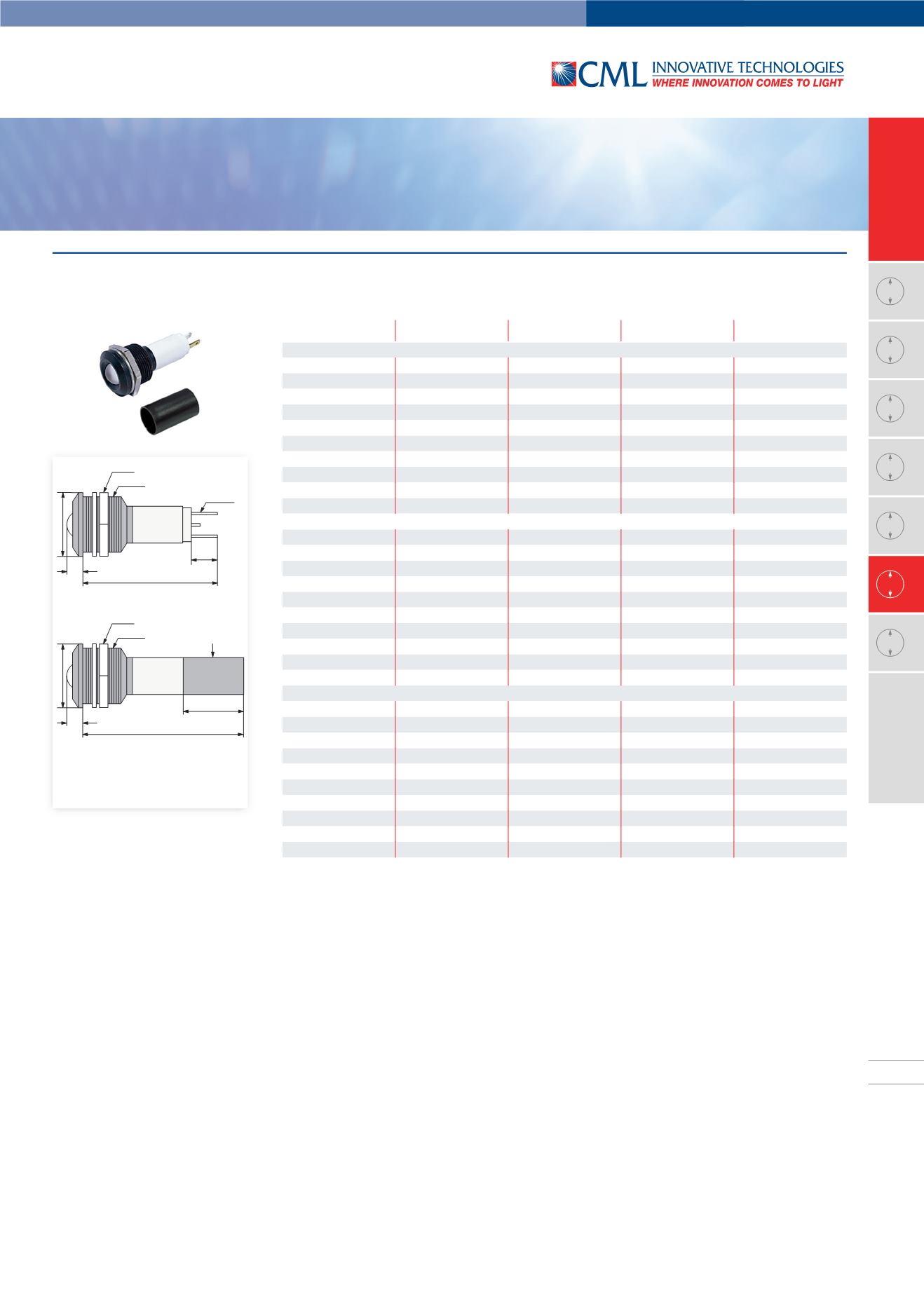

LED Signalleuchten
LED Panel Mount Indicators
Standardreflektor runde Linse 130/230V AC mit Berührungsschutzhülse IP67 /
Standard bezel round lens 130/230V AC with protection tube IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19730130
red
130V AC
6mA AC
600mcd
19730135
green
130V AC
6mA AC
510mcd
19730132
yellow
130V AC
6mA AC
400mcd
19730137
blue
130V AC
6mA AC
150mcd
1973013W
white
130V AC
3mA AC
450mcd
19730230
red
230V AC
3mA AC
300mcd
19730235
green
230V AC
3mA AC
255mcd
19730232
yellow
230V AC
3mA AC
200mcd
19730237
blue
230V AC
3mA AC
75mcd
1973023W
white
230V AC
1,5mA AC
225mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19731130
red
130V AC
6mA AC
600mcd
19731135
green
130V AC
6mA AC
510mcd
19731132
yellow
130V AC
6mA AC
400mcd
19731137
blue
130V AC
6mA AC
150mcd
1973113W
white
130V AC
3mA AC
450mcd
19731230
red
230V AC
3mA AC
300mcd
19731235
green
230V AC
3mA AC
255mcd
19731232
yellow
230V AC
3mA AC
200mcd
19731237
blue
230V AC
3mA AC
75mcd
1973123W
white
230V AC
1,5mA AC
225mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19732130
red
130V AC
6mA AC
600mcd
19732135
green
130V AC
6mA AC
510mcd
19732132
yellow
130V AC
6mA AC
400mcd
19732137
blue
130V AC
6mA AC
150mcd
1973213W
white
130V AC
3mA AC
450mcd
19732230
red
230V AC
3mA AC
300mcd
19732235
green
230V AC
3mA AC
255mcd
19732232
yellow
230V AC
3mA AC
200mcd
19732237
blue
230V AC
3mA AC
75mcd
1973223W
white
230V AC
1,5mA AC
225mcd
Maximale Frontplattenstärke 11mm /
Maximum panel thickness 11mm
Andere Spannungen auf Anfrage /
Other voltages on request
21
56
±
2
SW 22
5,5
ø 22
M 19 x 1
Berührungsschutzhülse
protection tube
47
±
2
SW 22
5,5
ø 22
M 19 x 1
9
2,8 x 0,8
Die 130VAC und 230VACVersionen werden grundsätzlich mit
Berührungsschutzhülse geliefert.
Ingeneralwe supply the130VACand230VACversionswitha
protection tube.
