64 / 77
6mm
8mm
12mm
14mm
16mm
19mm
22mm
EINBAUDURCHMESSER
MOUNTING HOLE
ZUBEHÖR
ACCESSORIES
64

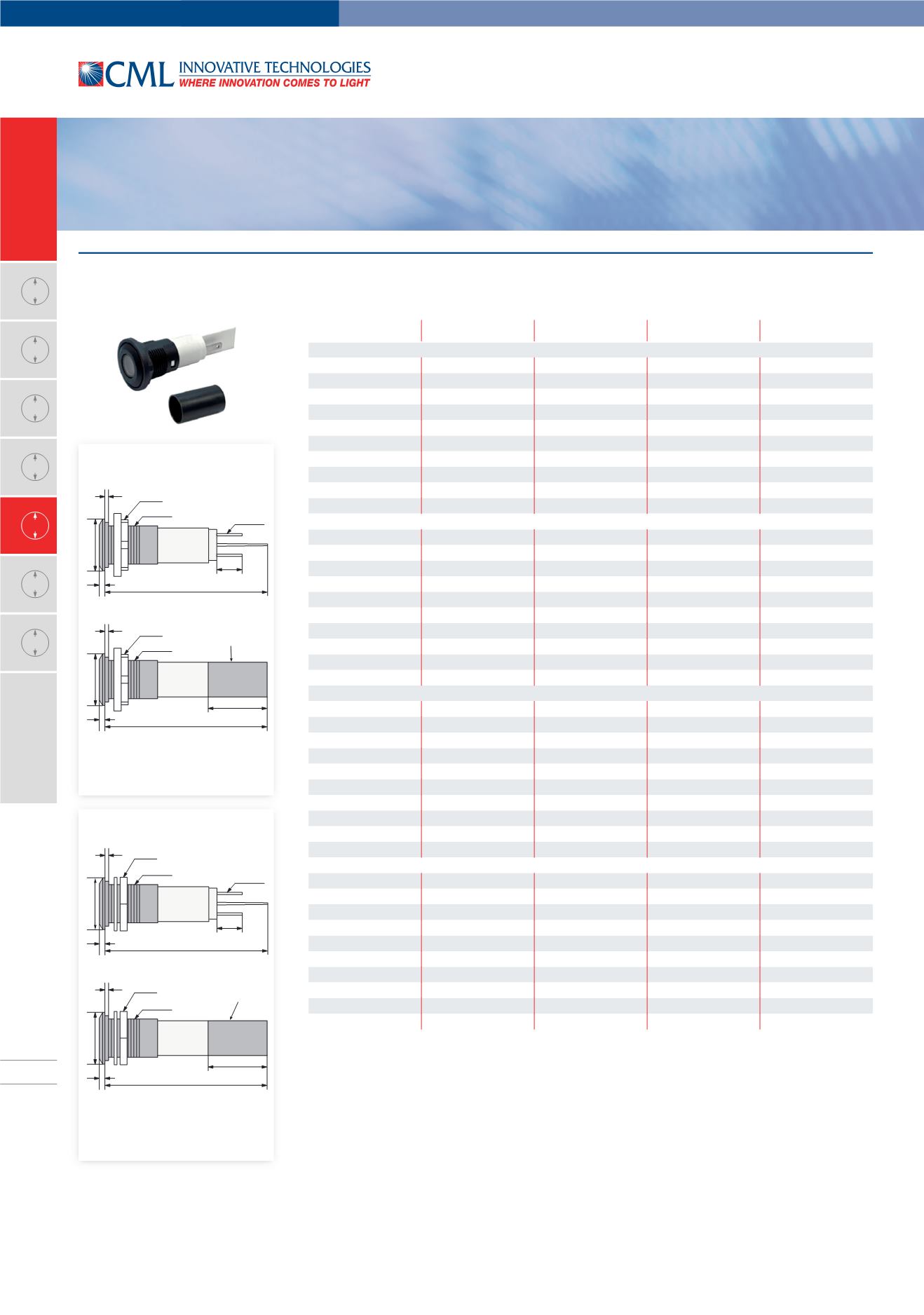

LED Signalleuchten
LED Panel Mount Indicators
Standardreflektor flache Linse 130/230V AC mit Berührungsschutzhülse IP67 /
Standard bezel flat lens 130/230V AC with protection tube IP67
Part Number
Colour
Voltage
Typ. Current
Typ. Lumi. Intensity
Schwarzer Kunststoffreflektor /
Black plastic bezel
19411130
red
130V AC
6mA AC
600mcd
19411135
green
130V AC
6mA AC
510mcd
19411132
yellow
130V AC
6mA AC
400mcd
19411137
blue
130V AC
6mA AC
150mcd
1941113W
white
130V AC
3mA AC
450mcd
19411230
red
230V AC
3mA AC
300mcd
19411235
green
230V AC
3mA AC
255mcd
19411232
yellow
230V AC
3mA AC
200mcd
19411237
blue
230V AC
3mA AC
75mcd
1941123W
white
230V AC
1,5mA AC
225mcd
Hochglanzverchromter Metallreflektor /
Satin chrome bezel
19410130M
red
130V AC
6mA AC
600mcd
19410135M
green
130V AC
6mA AC
510mcd
19410132M
yellow
130V AC
6mA AC
400mcd
19410137M
blue
130V AC
6mA AC
150mcd
1941013WM
white
130V AC
3mA AC
450mcd
19410230M
red
230V AC
3mA AC
300mcd
19410235M
green
230V AC
3mA AC
255mcd
19410232M
yellow
230V AC
3mA AC
200mcd
19410237M
blue
230V AC
3mA AC
75mcd
1941023WM
white
230V AC
1,5mA AC
225mcd
Schwarzverchromter Metallreflektor /
Black chrome bezel
19411130M
red
130V AC
6mA AC
600mcd
19411135M
green
130V AC
6mA AC
510mcd
19411132M
yellow
130V AC
6mA AC
400mcd
19411137M
blue
130V AC
6mA AC
150mcd
1941113WM
white
130V AC
3mA AC
450mcd
19411230M
red
230V AC
3mA AC
300mcd
19411235M
green
230V AC
3mA AC
255mcd
19411232M
yellow
230V AC
3mA AC
200mcd
19411237M
blue
230V AC
3mA AC
75mcd
1941123WM
white
230V AC
1,5mA AC
225mcd
Mattverchromter Metallreflektor /
Matt chrome bezel
19412130M
red
130V AC
6mA AC
600mcd
19412135M
green
130V AC
6mA AC
510mcd
19412132M
yellow
130V AC
6mA AC
400mcd
19412137M
blue
130V AC
6mA AC
150mcd
1941213WM
white
130V AC
3mA AC
450mcd
19412230M
red
230V AC
3mA AC
300mcd
19412235M
green
230V AC
3mA AC
255mcd
19412232M
yellow
230V AC
3mA AC
200mcd
19412237M
blue
230V AC
3mA AC
75mcd
1941223WM
white
230V AC
1,5mA AC
225mcd
Maximale Frontplattenstärke 11mm /
Maximum panel thickness 11mm
Andere Spannungen auf Anfrage /
Other voltages on request
Kunststoffausführung
/versionwithblackplasticbezel
Die 130VAC und 230VACVersionen werdengrundsätzlich mit
Berührungsschutzhülse geliefert.
Ingeneralwe supply the130VACand230VACversionswitha
protection tube.
58
±
2
2
M 16 x 1
SW 18
ø 18,3
1
21
58
±
2
9
2
2,8 x 0,8
M 16 x 1
SW 18
ø 18,3
1
Berührungsschutzhülse
protection tube
Flachdichtung /
gasket
Flachdichtung /
gasket
Metallausführung
/versionwithmetalbezel
Die 130VAC und 230VACVersionen werdengrundsätzlich mit
Berührungsschutzhülse geliefert.
Ingeneralwe supply the130VACand230VACversionswitha
protection tube.
58
±
2
2
M 16 x 1
ø 18,3
1
21
SW 19
58
±
2
9
2
2,8 x 0,8
M 16 x 1
ø 18,3
1
SW 19
Berührungsschutzhülse
protection tube
Flachdichtung /
gasket
Flachdichtung /
gasket
